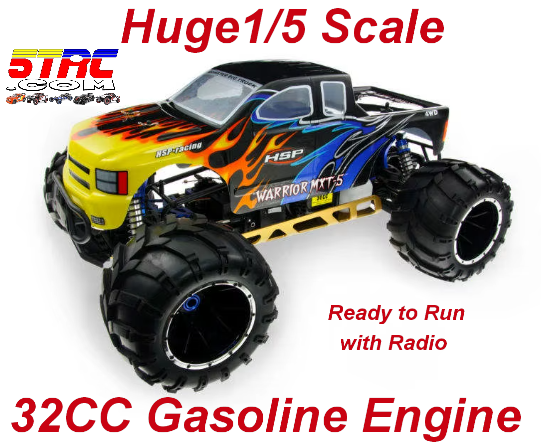

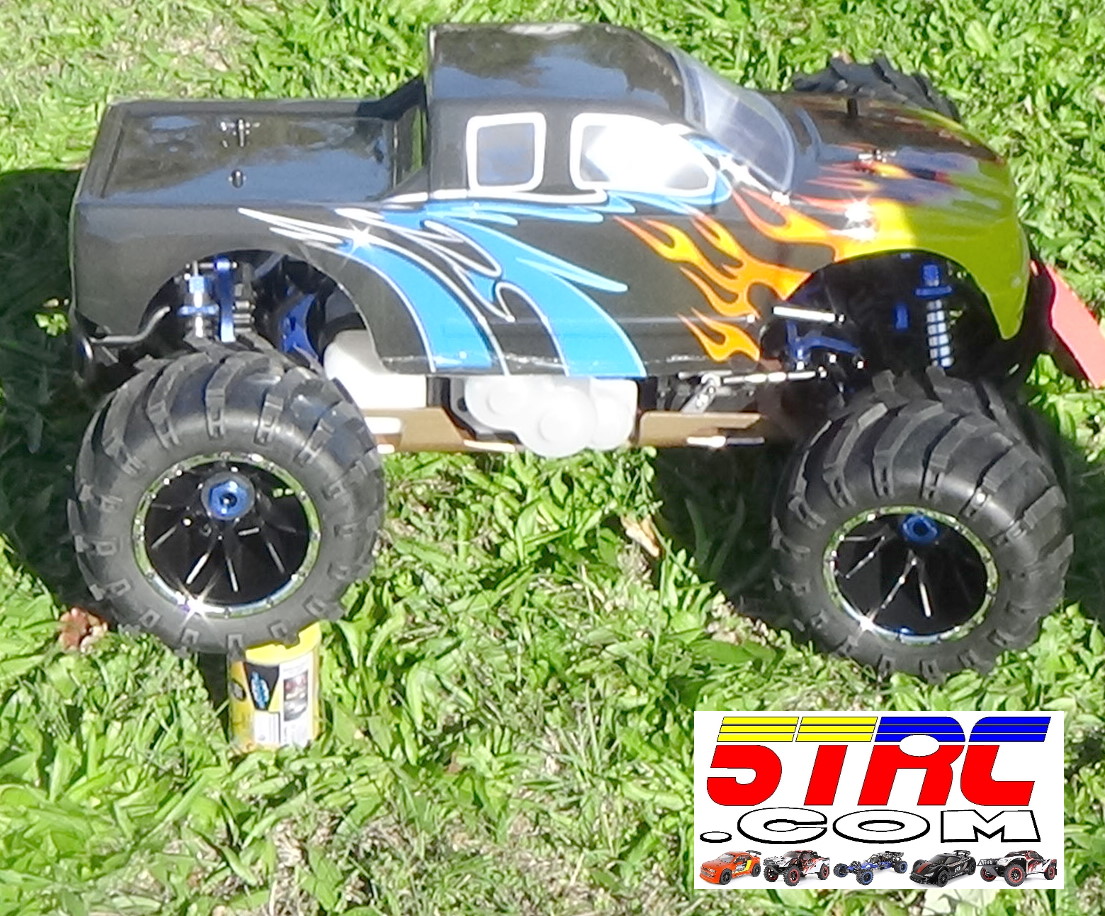

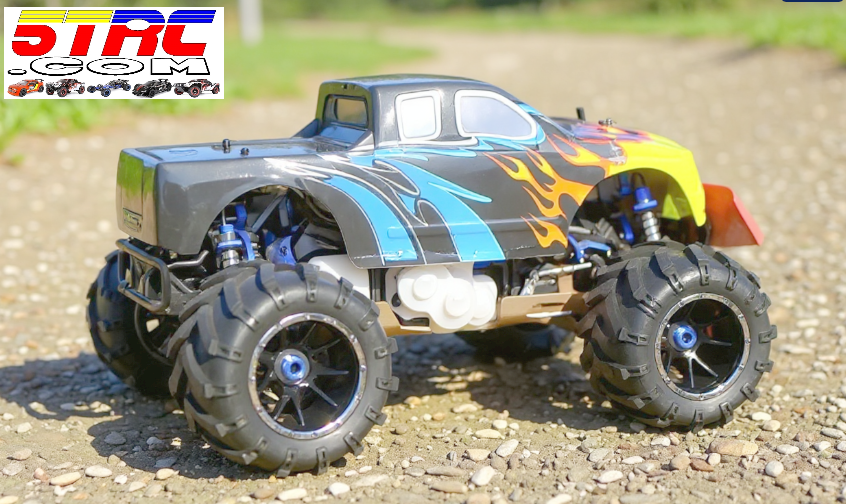

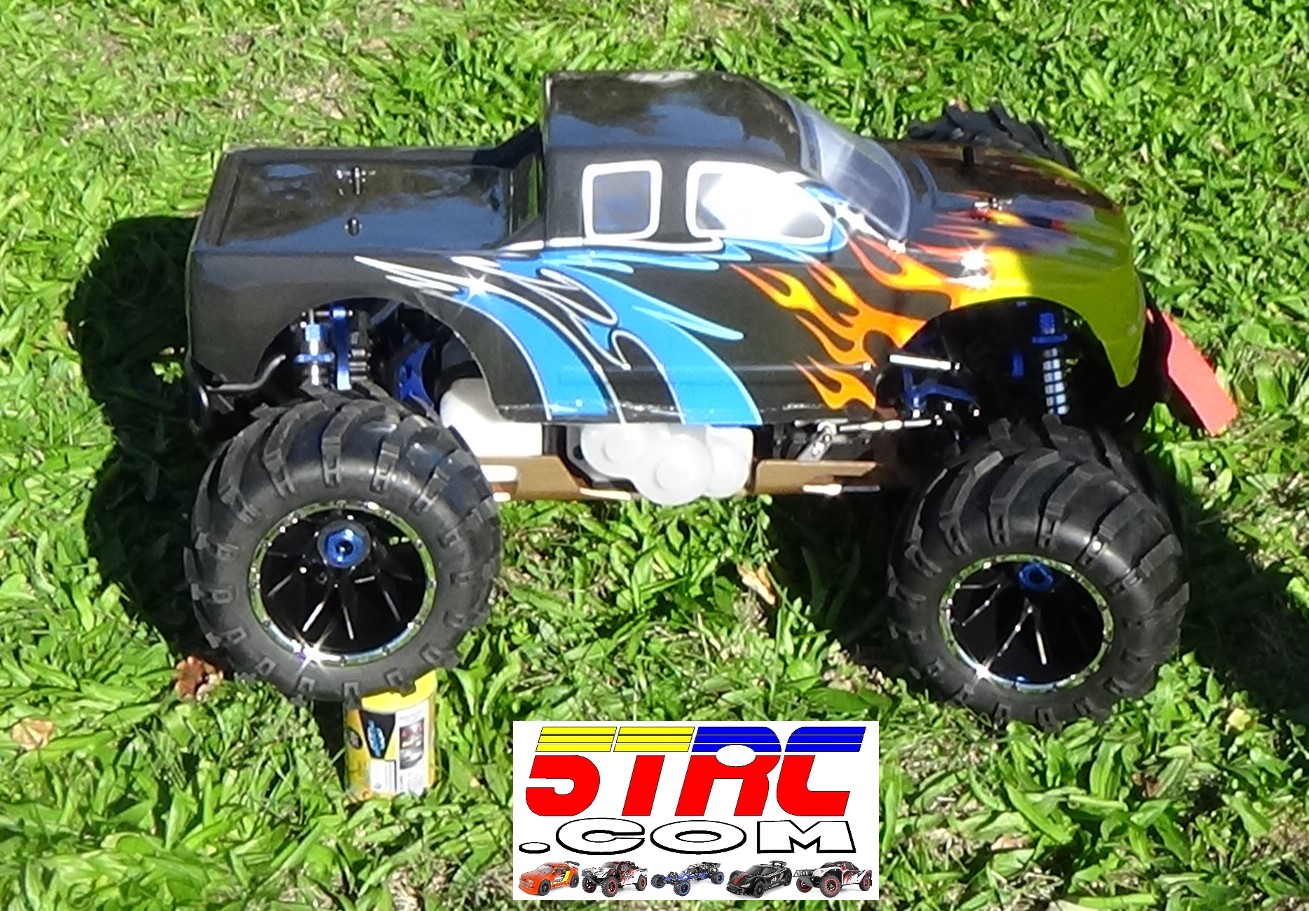

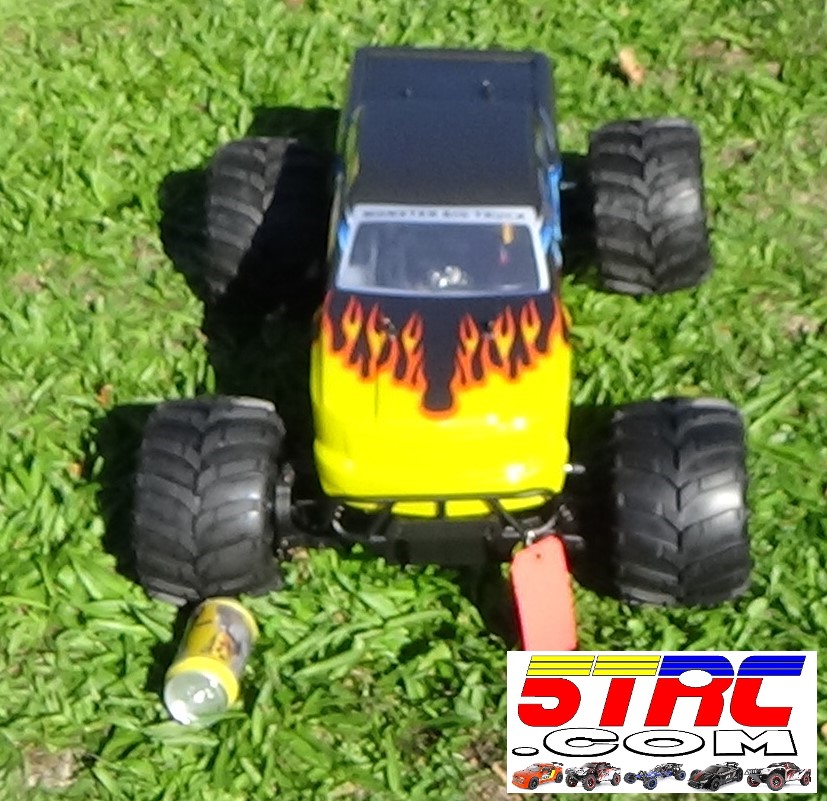

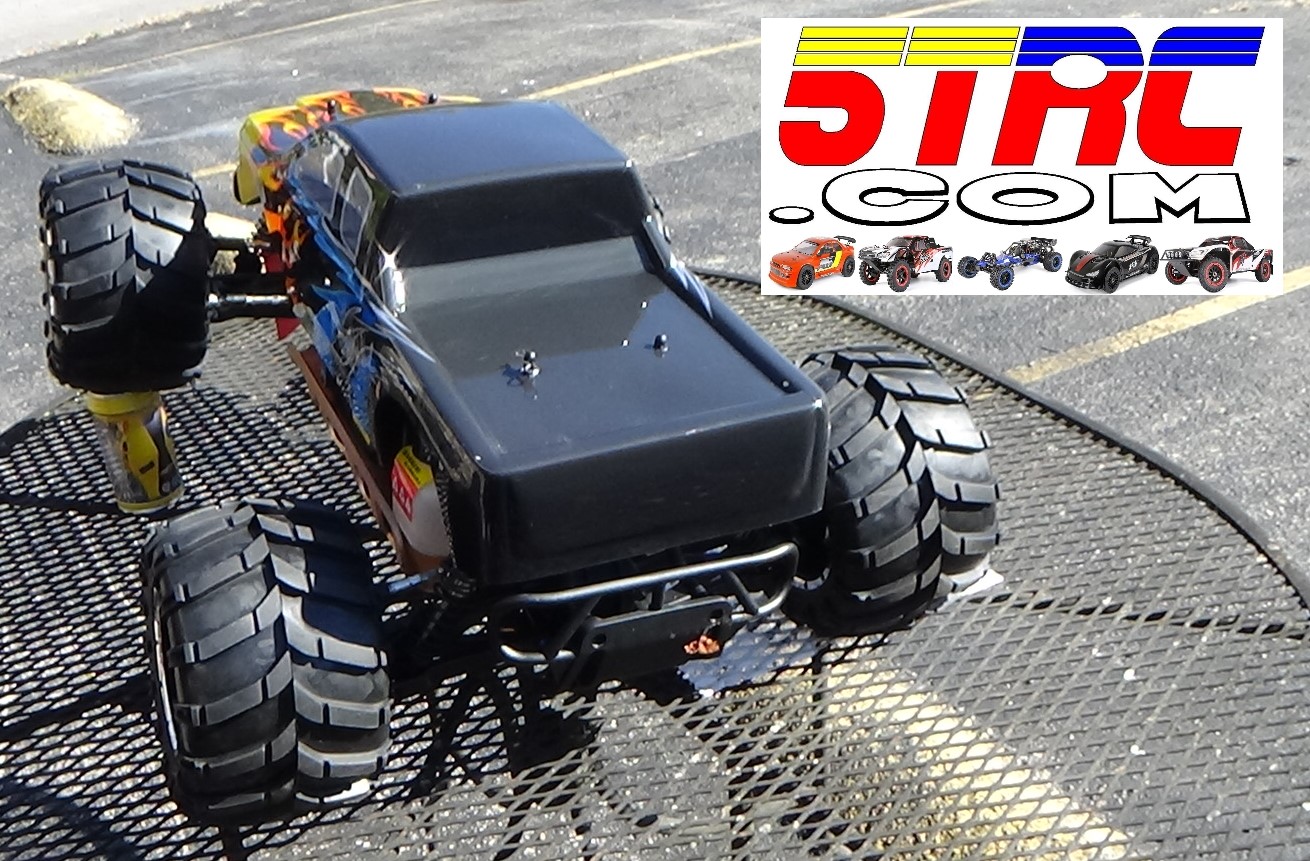

HSP 1/5 Scale 32CC Gasoline RC 4WD Ready To Run with Radio

Overview

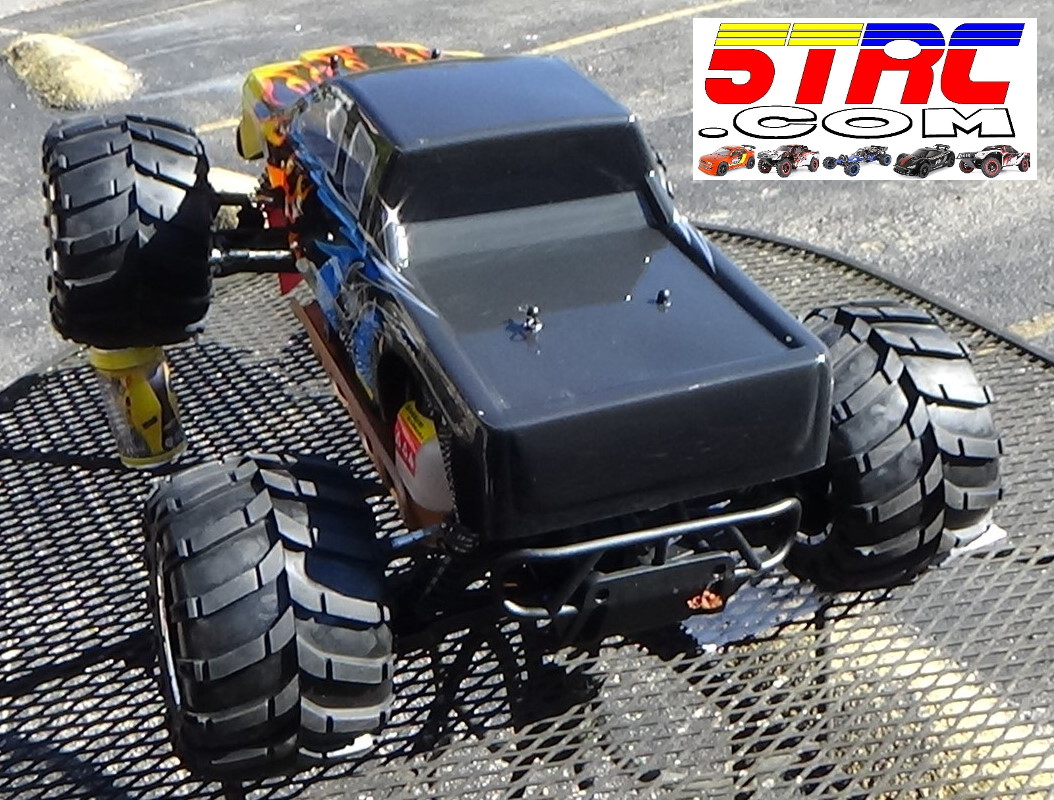

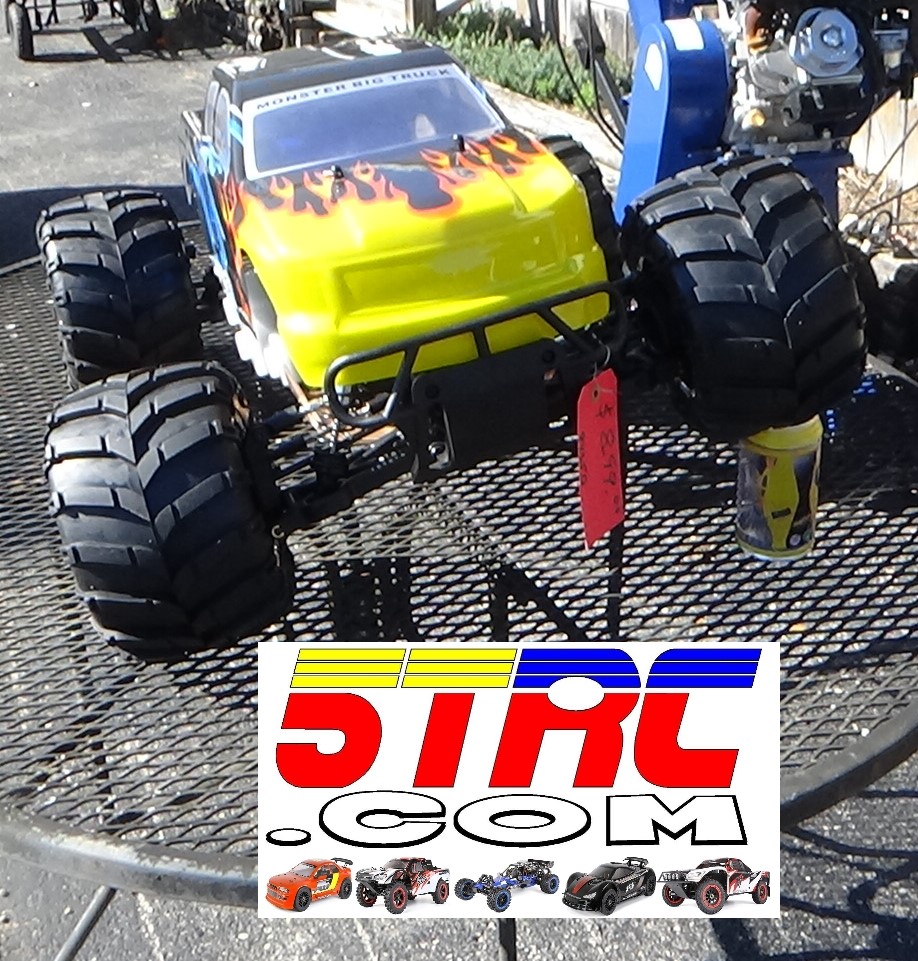

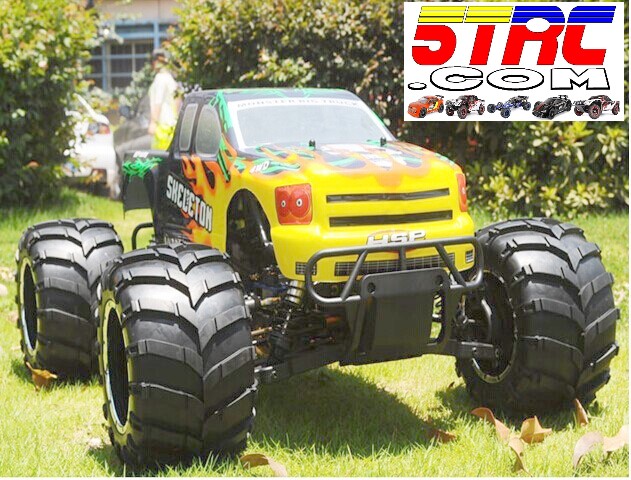

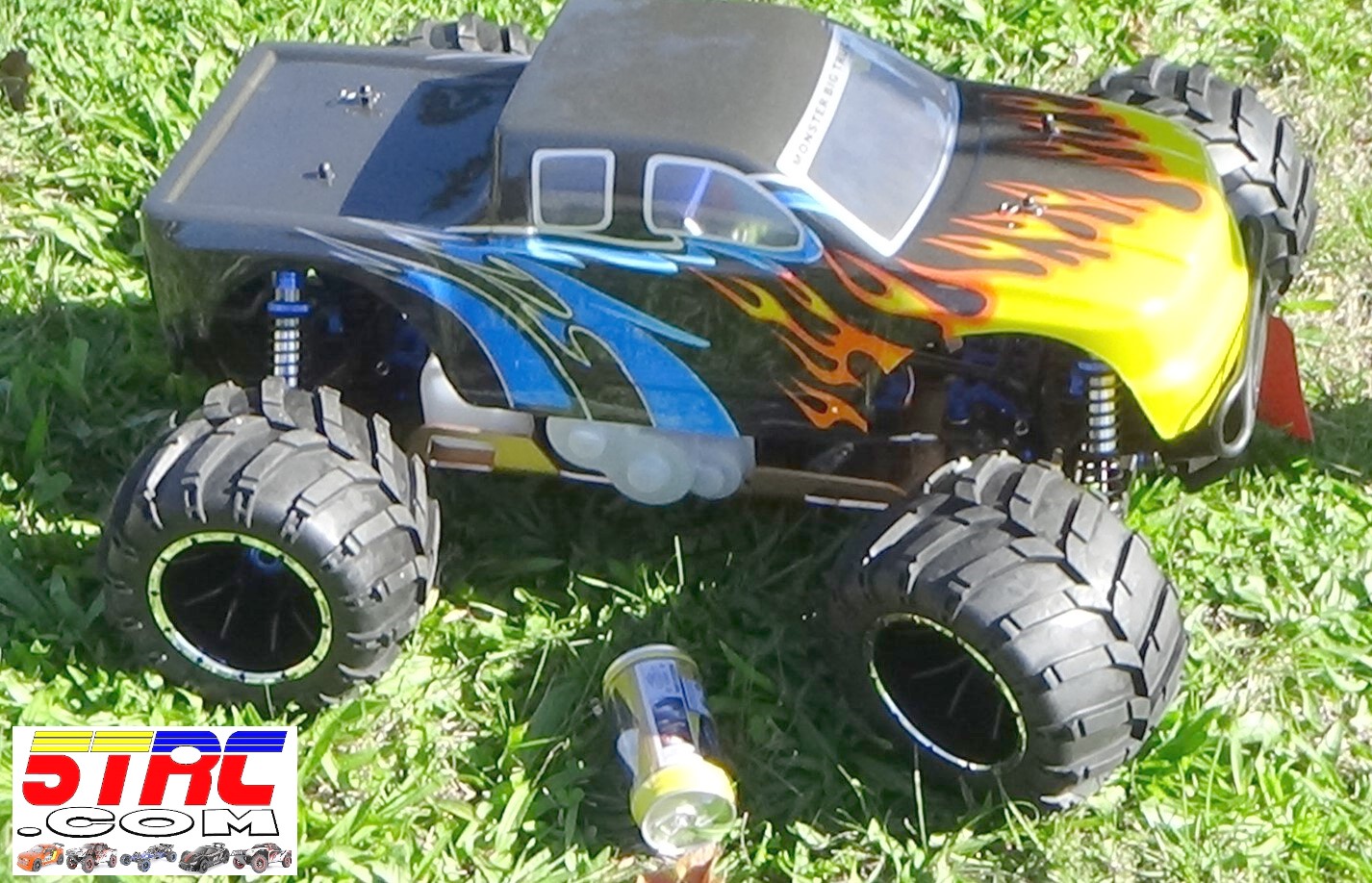

The HSP 1/5 Scale 32CC Gasoline RC 4WD is a large-scale off-road racing truck built for serious RC enthusiasts. Additionally, it delivers fast acceleration, precise handling, extreme durability, and an authentic gasoline-powered driving experience. Furthermore, every truck has a random factory body color, making each unit unique.

---

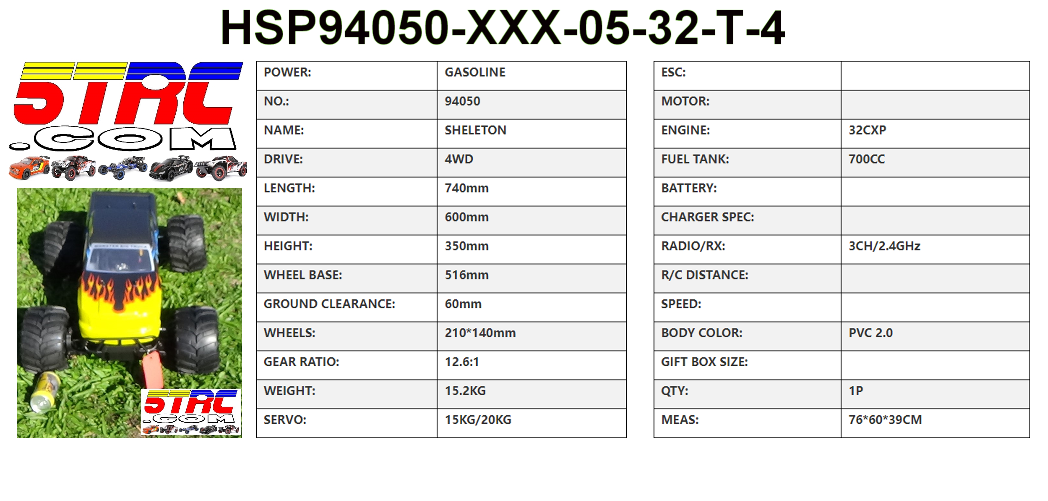

Specifications

• Model Number: 94050

• Scale: 1:5

• Drive: 4WD

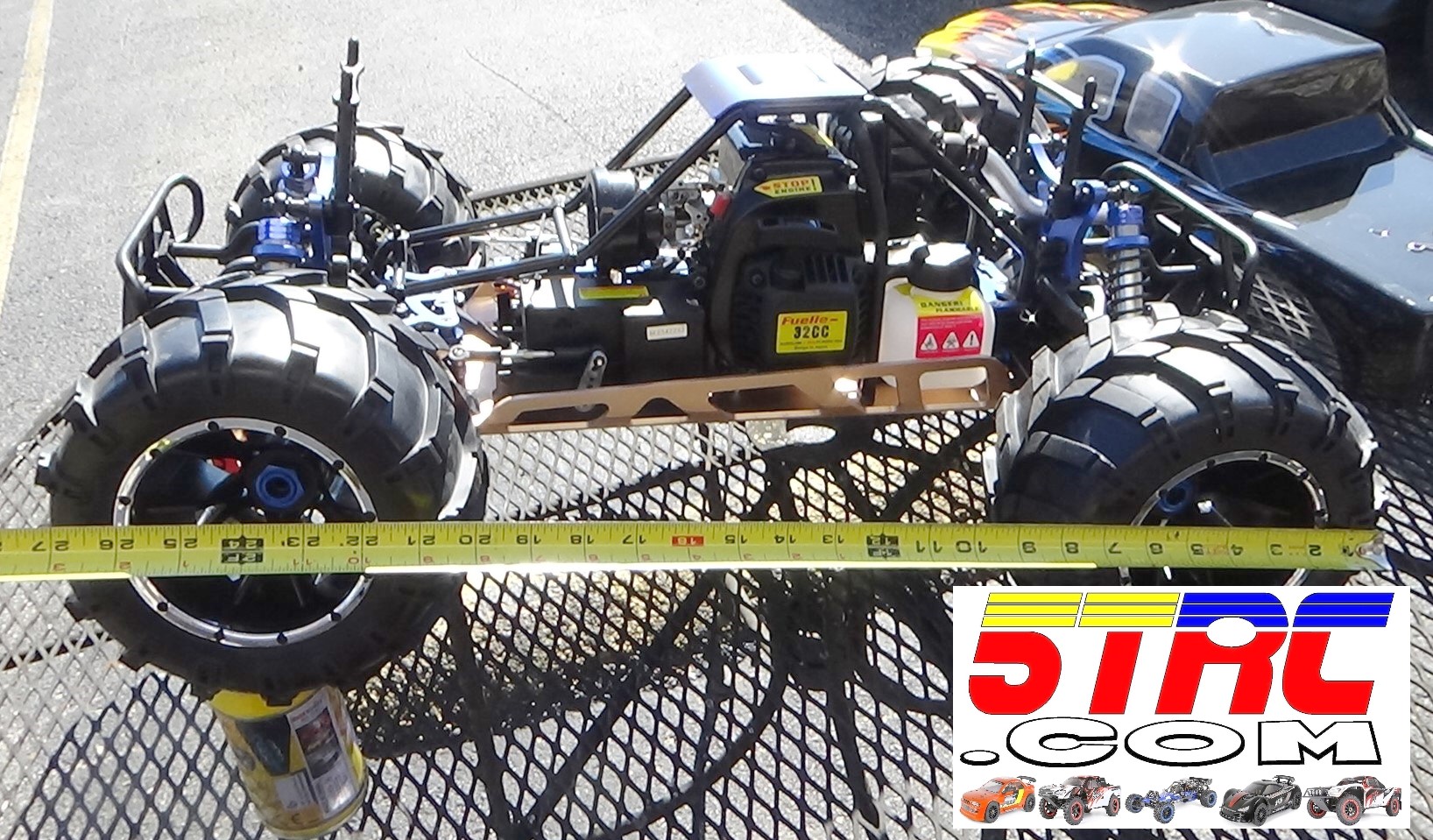

• Dimensions: 740 x 600 x 350mm

• Wheelbase: 516mm

• Ground Clearance: 60mm

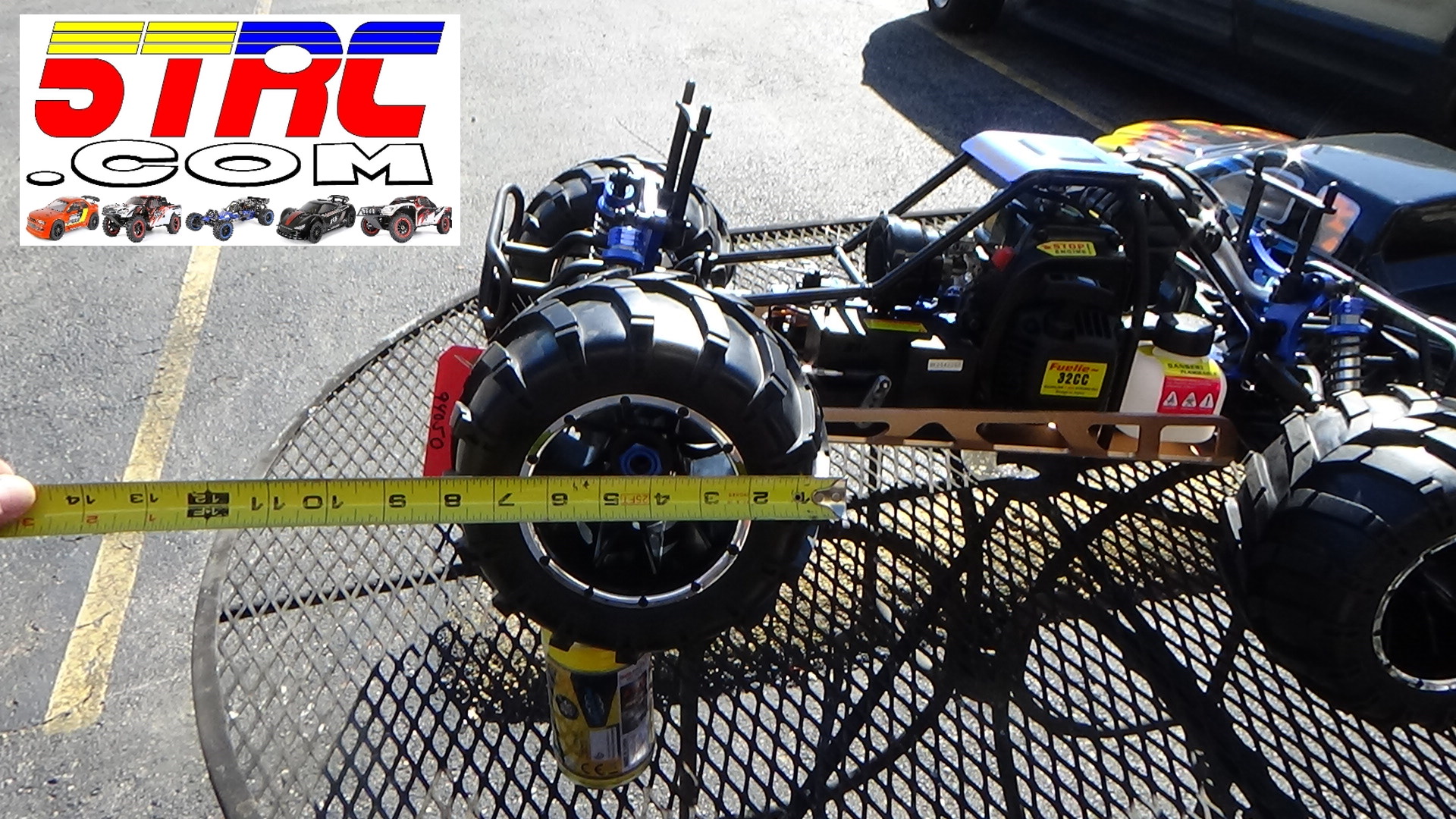

• Wheels: 210 x 140mm

• Gear Ratio: 12.6:1

• Vehicle Weight: 15.2KG

• Gross Weight: 17.2KG

• Battery: 6V 2500mAh Ni-MH

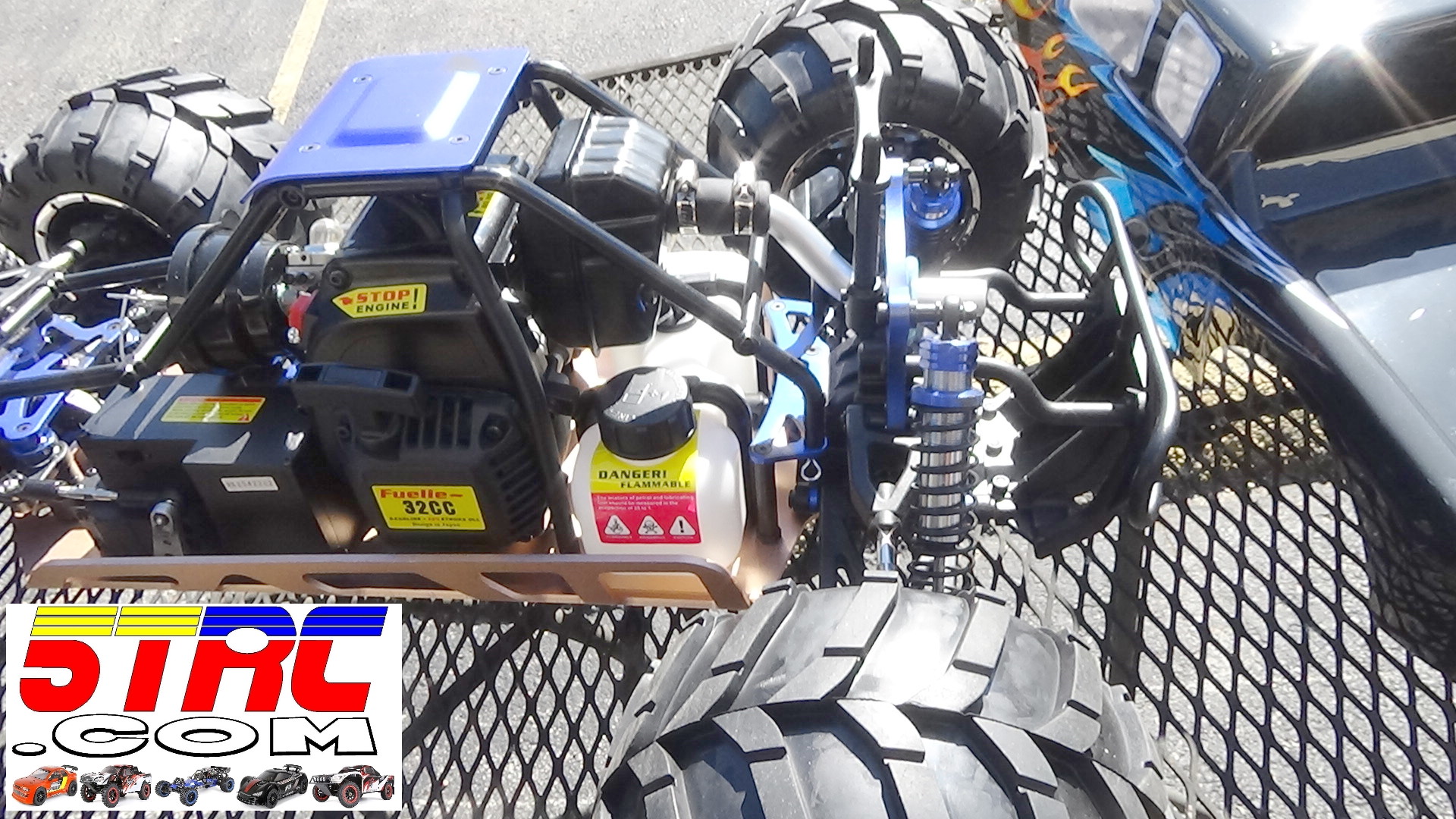

• Engine: 32CXP Gasoline

• Fuel Tank: 700cc

• Radio: 3CH, 2.4GHz

---

Key Features

• High-performance differential system with durable gears for heavy loads. Also, it provides reliable performance under extreme stress.

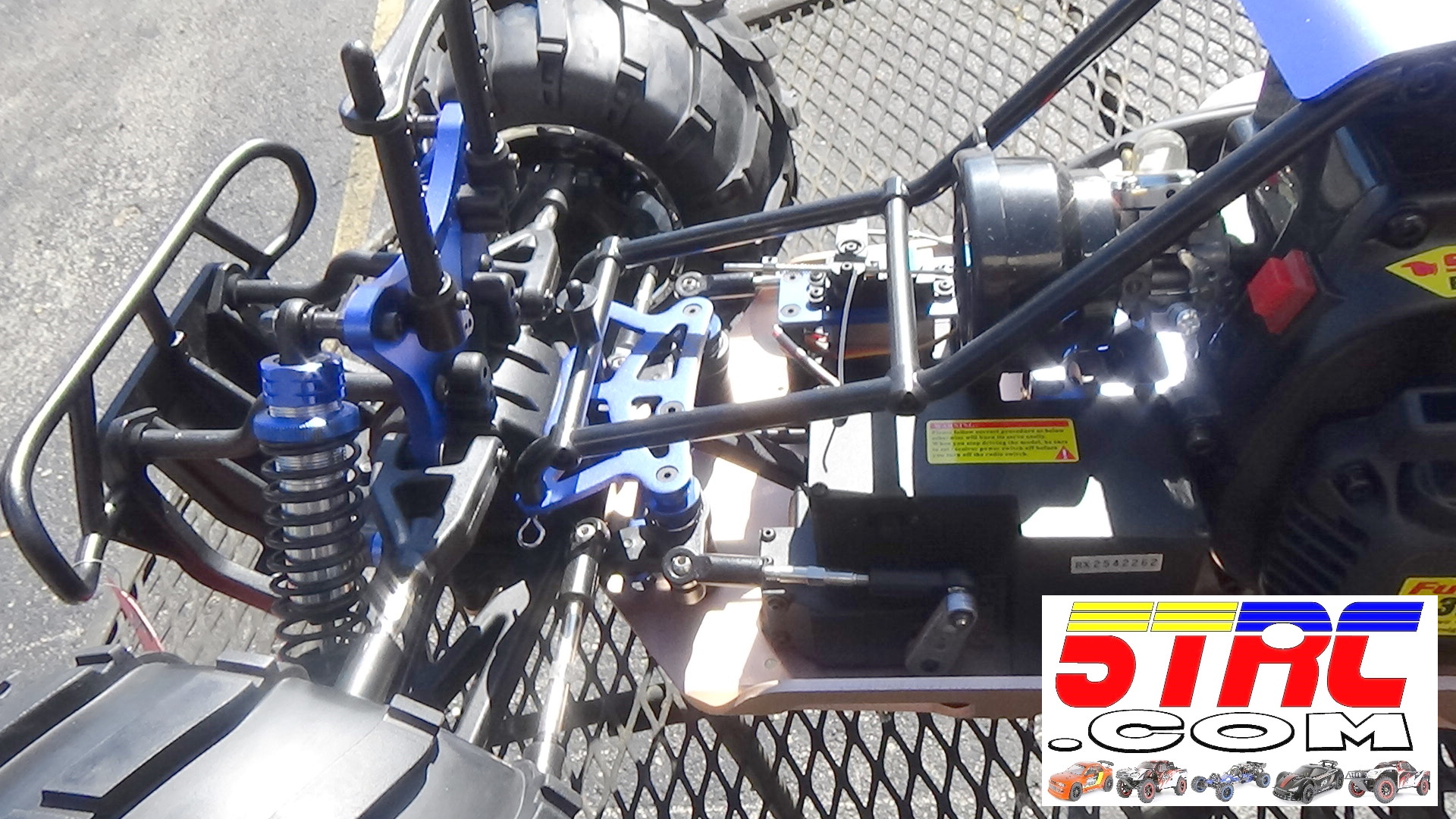

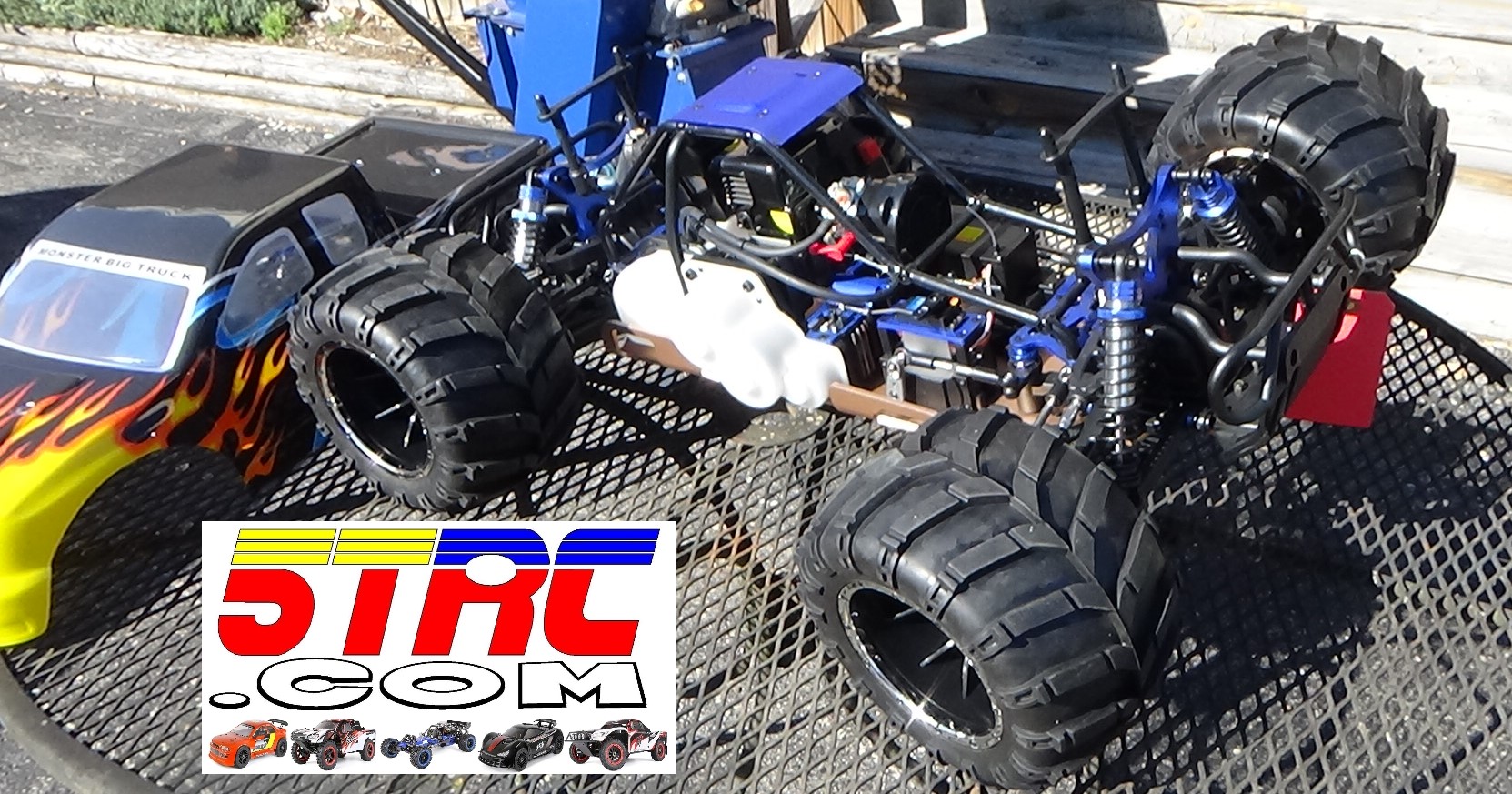

• Four-wheel drive with sturdy universal joint cups and precision bearings. Additionally, the drivetrain is designed for long-lasting durability.

• Fiberglass brake butterfly for reliable braking under heat. Moreover, it ensures consistent control.

• Reinforced wheel frame assembly secured with 24 screws for stability. Furthermore, it improves handling on rough terrain.

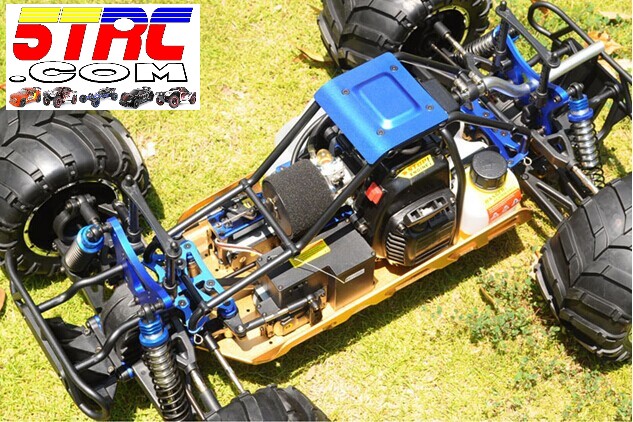

• Fully polished all-metal 6061 base plate. In addition, it strengthens the chassis against impacts.

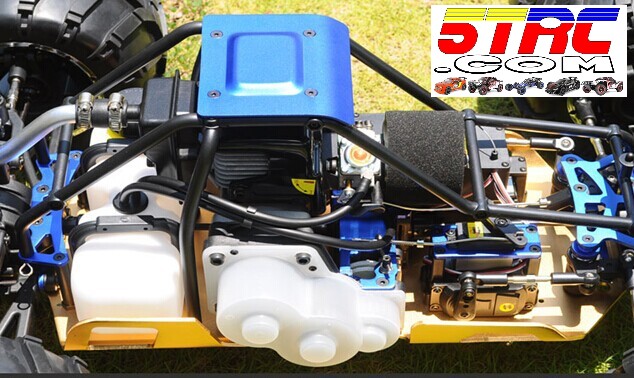

• Full roll cage protects internal components. Finally, this ensures safety during crashes.

---

Packing List

• 94050 Model Car x1

• 2.4G Remote Controller x1

• Battery Charger x1

• 2500mAh Battery x1 (installed)

• Hex Screwdriver Set x1

• Hex Wrench x1

• Instruction Manual x1

• Stickers x1

Note: Body color may be random from the factory. Also, accessories may vary slightly.

---

Assembly and Operation

• Next, install the wheels and charge the battery for at least 2 hours.

• The USB charging plug allows charging without disassembly. Additionally, this makes setup faster and safer.

• Allow the battery to cool for 30 minutes after full charge. Then, remove the charger within 30 minutes to protect battery health.

• Finally, store the battery fully charged.

---

Crash Durability

• Minor crashes rarely cause damage. For example, a 20 MPH tree impact resulted in under $20 in real-world repairs.

---

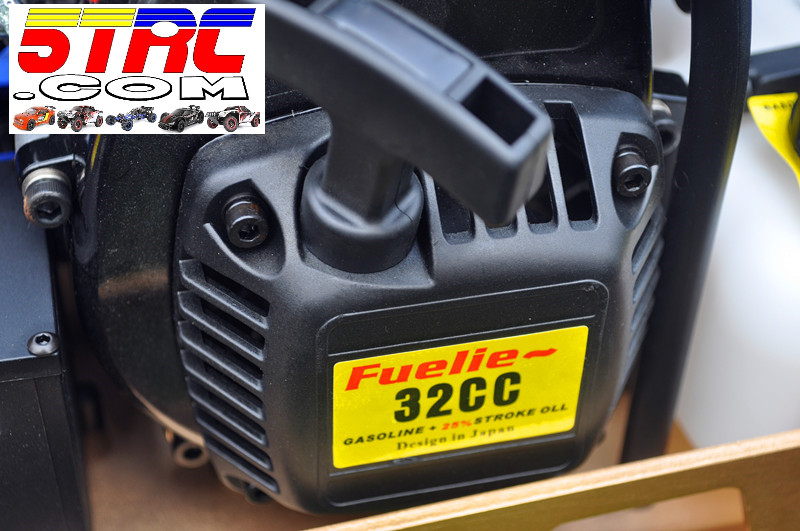

Fuel Mixing

• Use a 25:1 gasoline to oil ratio. Furthermore, high-quality mineral TC-W3 2-stroke oil reduces plug fouling and carbon buildup.

• Many brands work well. Also, always mix carefully to ensure engine longevity.

---

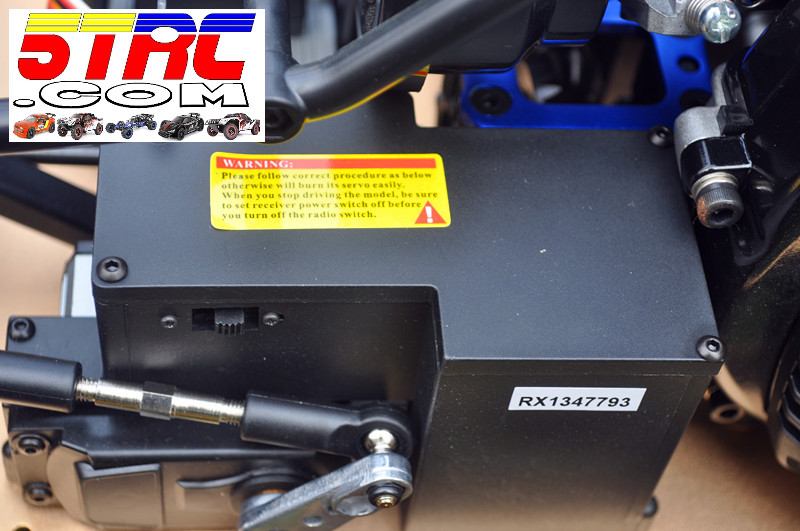

Radio Setup

• Uses 2 channels of a 6-channel radio. Additionally, trim adjustments are under the rear radio cover:

  • Top left: Steering trim

  • Top right: Throttle & brake trim

  • Bottom: Control range adjustments

---

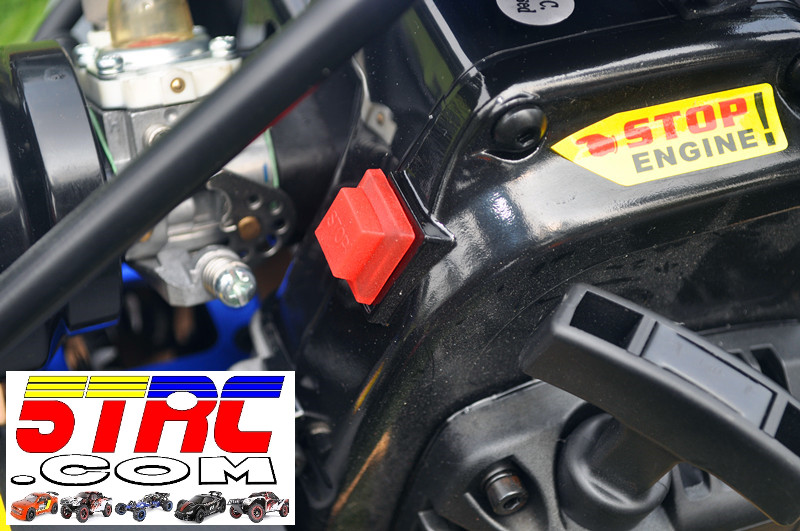

Starting Instructions

• Turn on the car and radio. Then, set the choke to vertical closed position.

• Prime 3–4 times. Next, pull starter rope gently to engage, then short quick pulls.

• Turn off choke and restart once the engine fires. Finally, check that everything operates smoothly.

---

Break-In Procedure

• Run at idle or light throttle with cooling breaks. After that, gradually increase load over several cycles.

• After staged break-in, full-throttle runs are safe. Then, recheck and tighten the exhaust after break-in.

---

Maintenance

• Check fasteners regularly. Also, use thread locker on clutch and brake assemblies.

• Clean threads with alcohol before applying. Furthermore, inspect hardware frequently for safety.

---

Plastic vs Aluminum

• High-strength ABS parts flex and absorb impact better than aluminum. Additionally, aluminum can transfer shock and damage surrounding components.

• Avoid replacing plastic parts with aluminum unnecessarily.

---

Disclaimer and Safety Notice

• All items sold by 5TRC are brand new. Furthermore, most customers experience no issues.

• New users should watch instructional RC videos before operating. Also, ensure you follow all safety guidelines.

• Rovan, Rofun, and HSP vehicles are sold without warranty due to hobby modifications. Finally, vehicles can cause burns, injury, or worse if misused.

• Buyer assumes responsibility and agrees to hold 5TRC harmless.

• eBay Money Back Guarantee may apply depending on purchase channel.
