Description

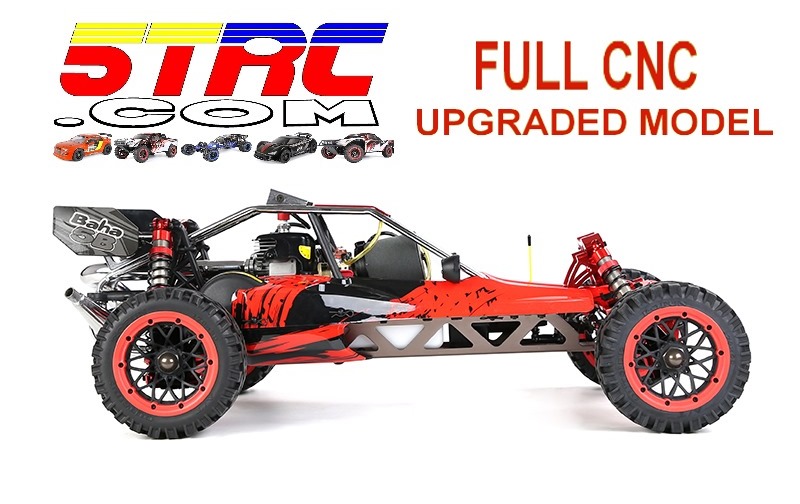

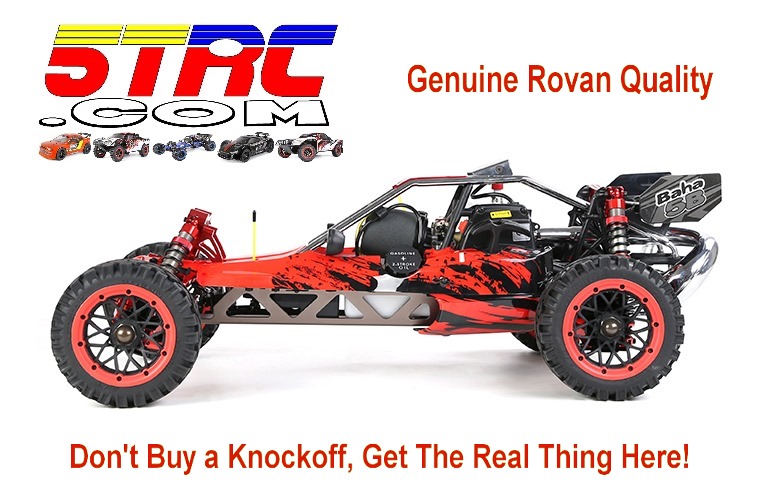

Rovan 360A Red 1/5 Scale Overview

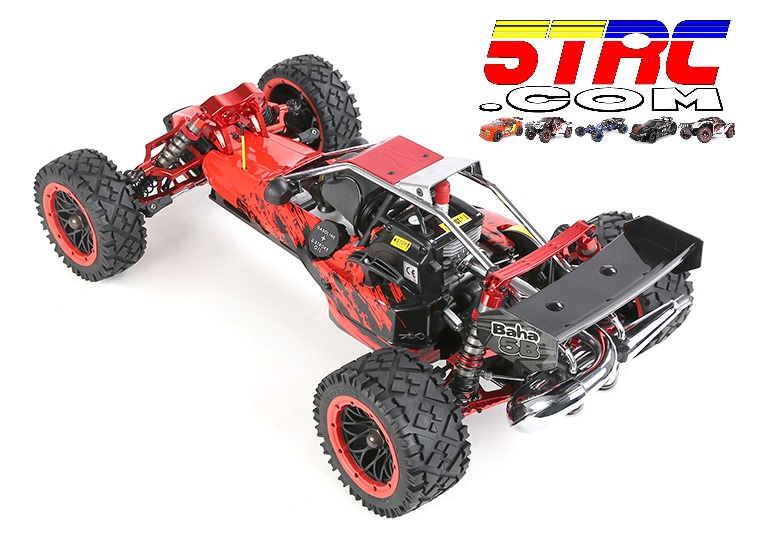

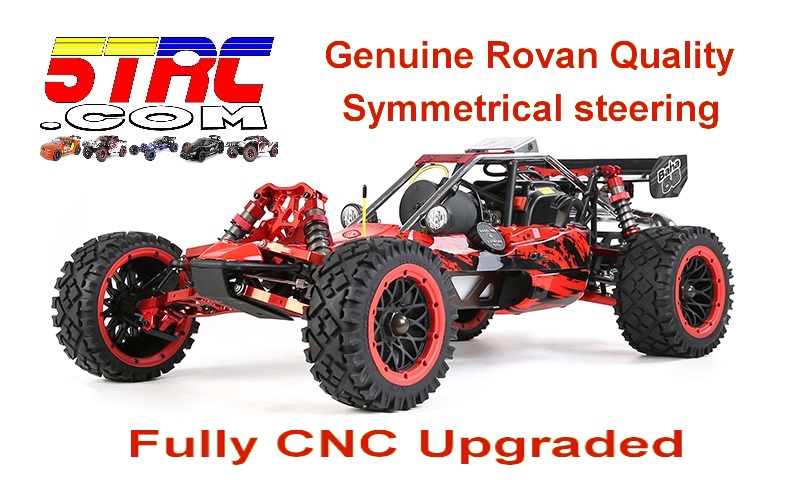

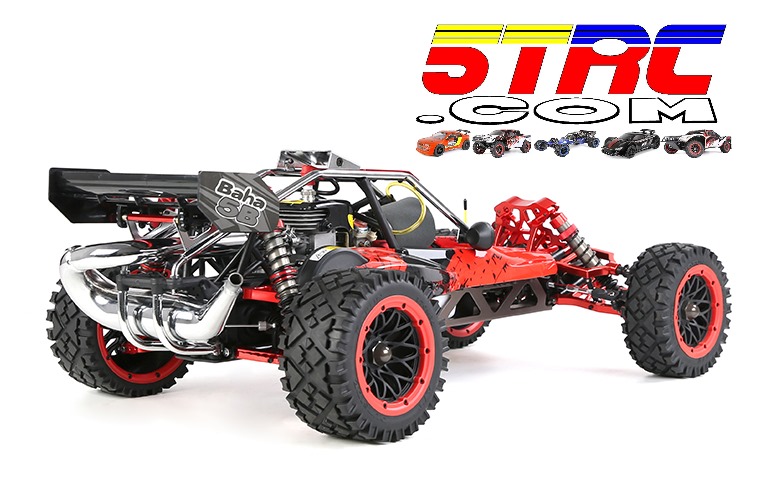

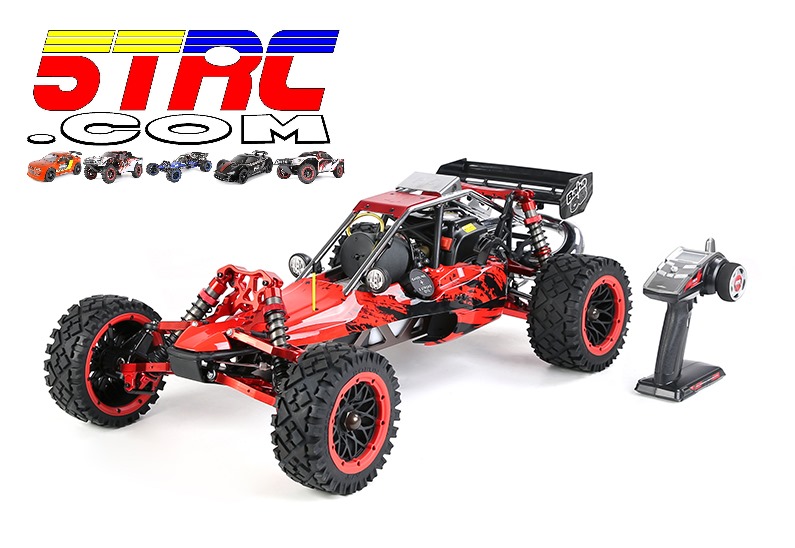

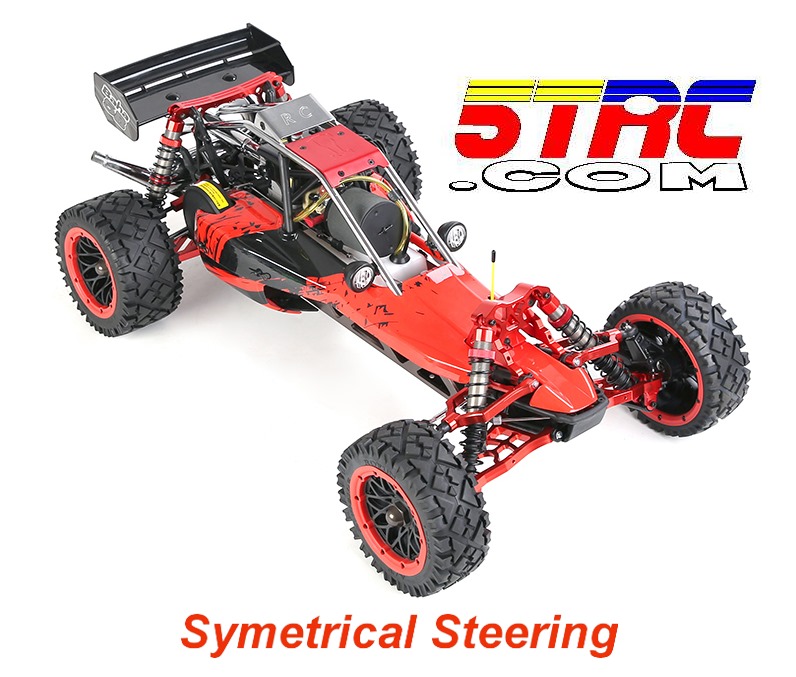

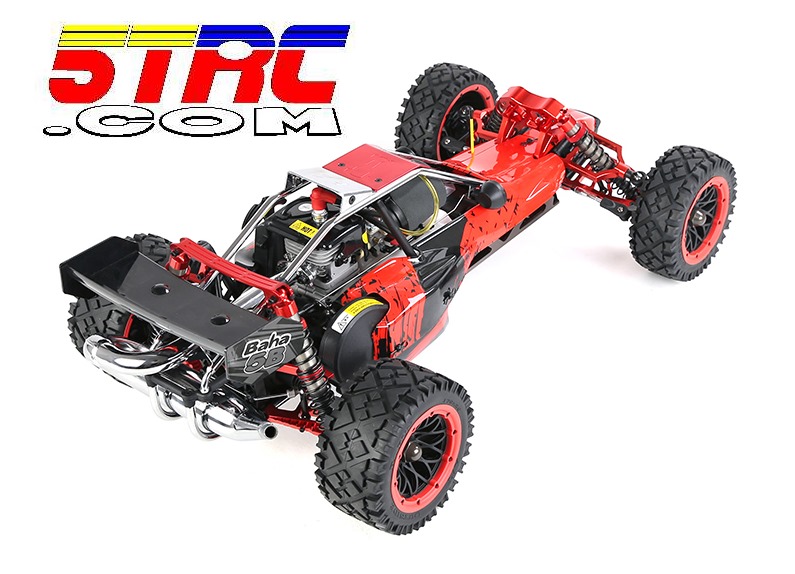

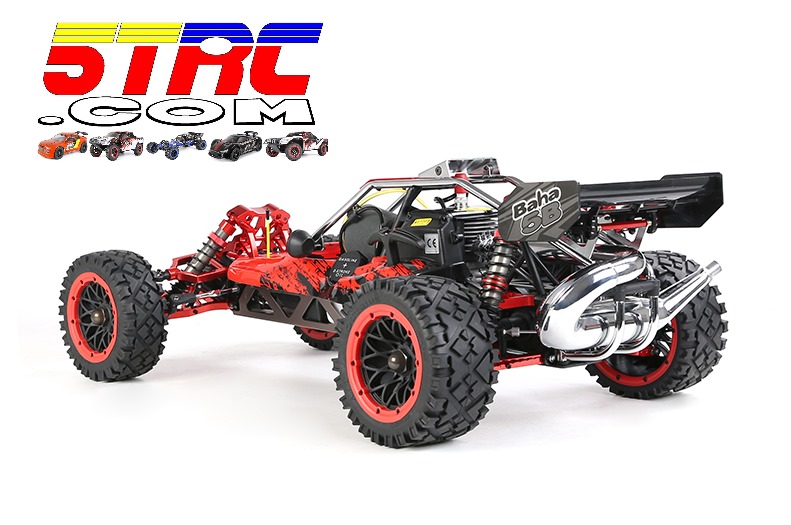

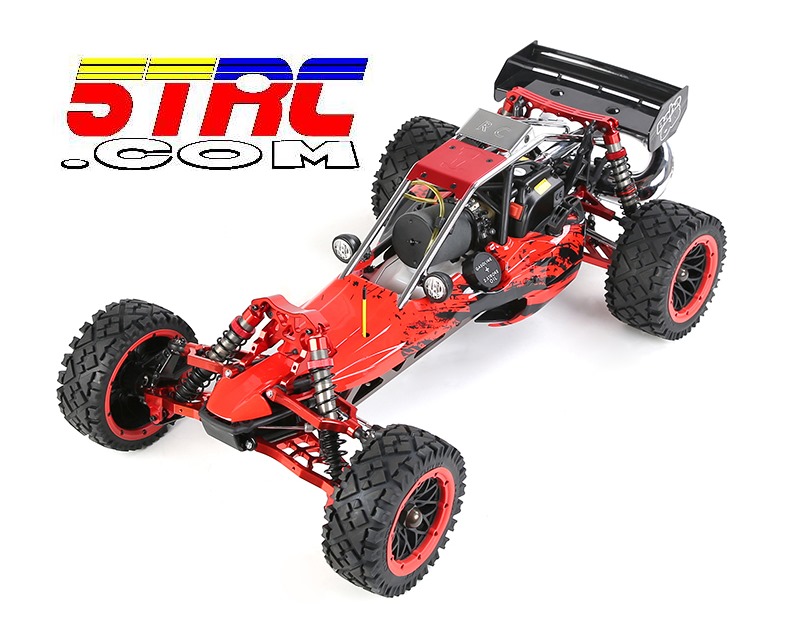

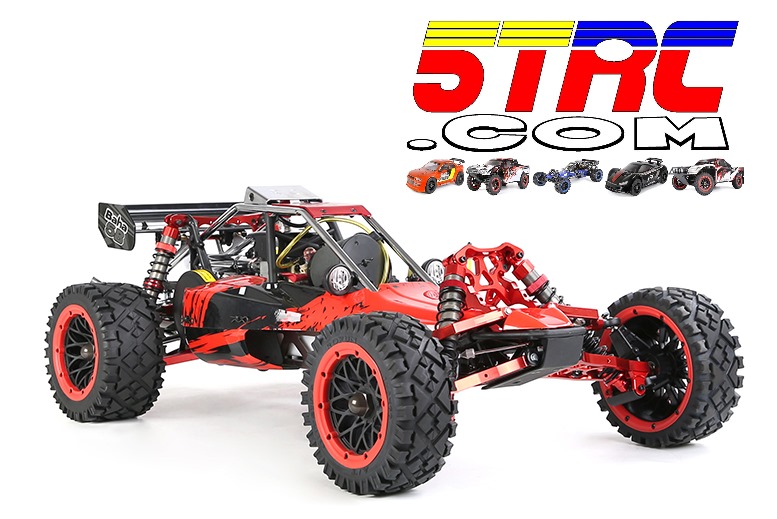

The Rovan 360A Red is a 1/5 scale gasoline buggy built for drivers who want a factory-equipped aluminum upgrade platform. A 36cc air-cooled two-stroke engine powers the Rovan 360A and delivers strong torque, stable power delivery, and consistent performance across dirt, grass, and open off-road terrain.

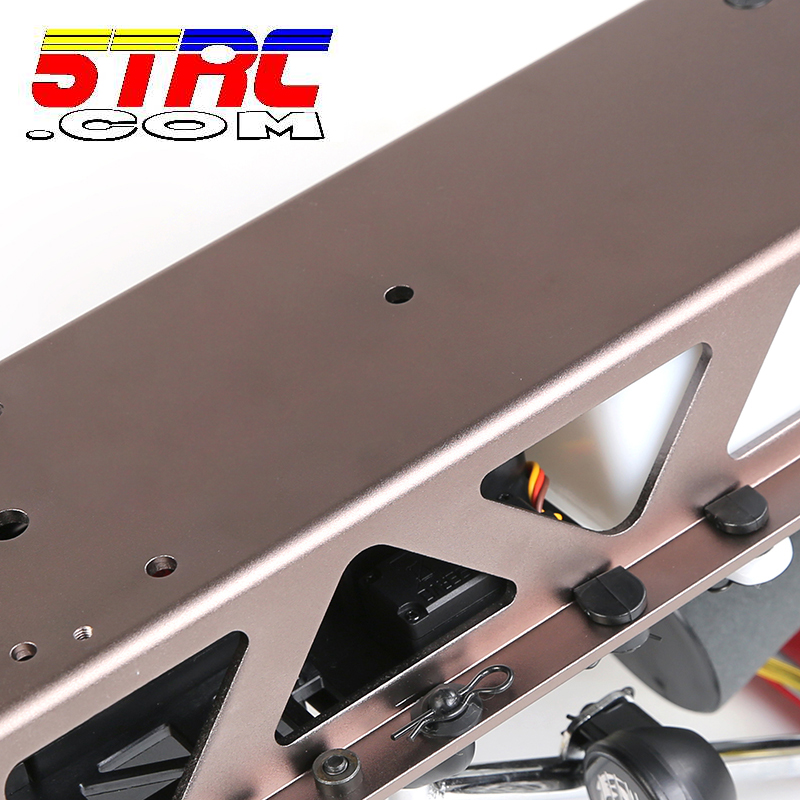

Rovan equips the 360A with CNC aluminum suspension components, metal drivetrain parts, and a reinforced metal roll cage. As a result, this buggy arrives ready for aggressive driving without the need for immediate upgrades.
Chassis, Drivetrain, and Suspension

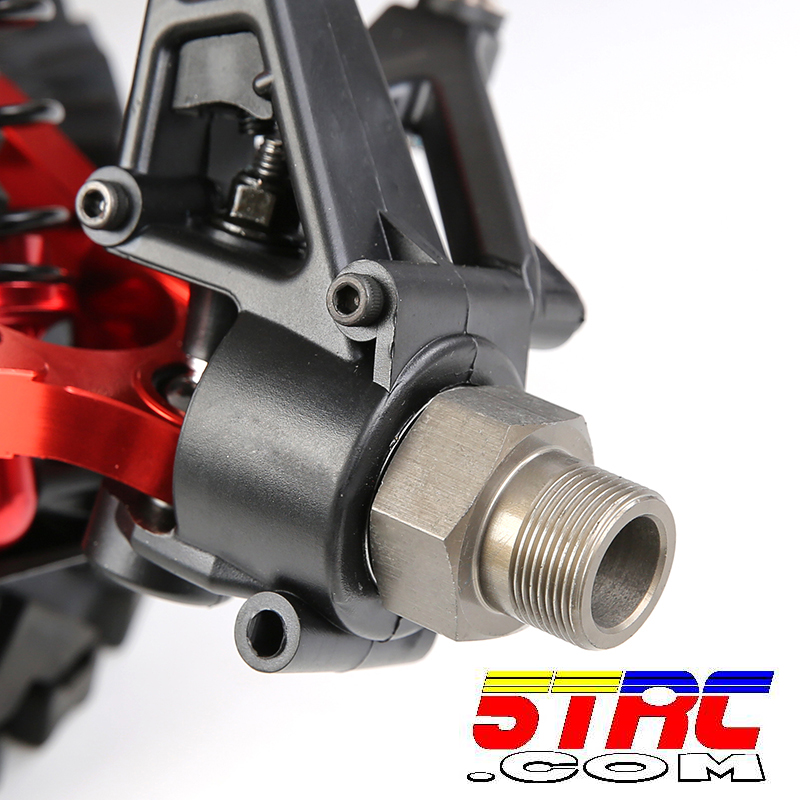

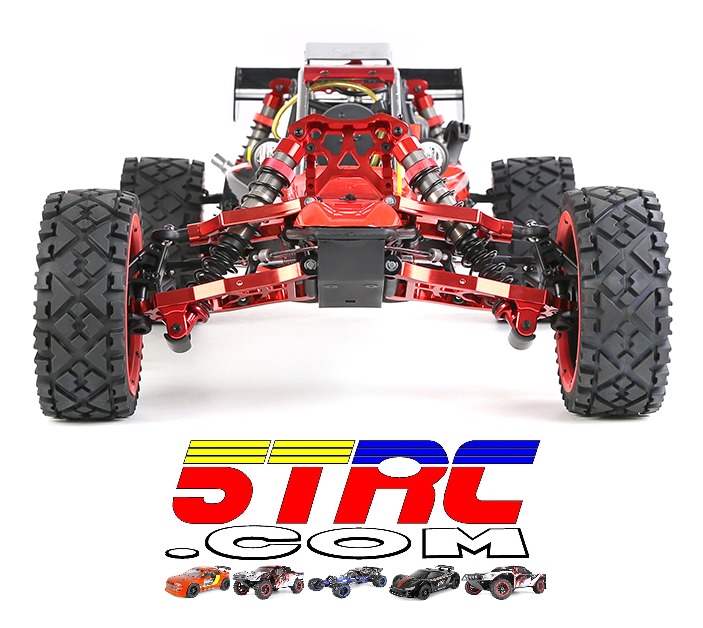

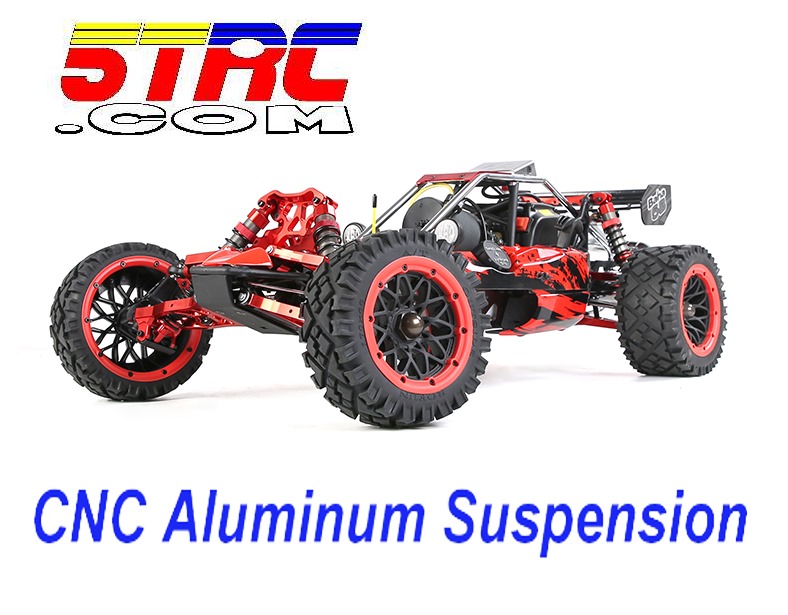

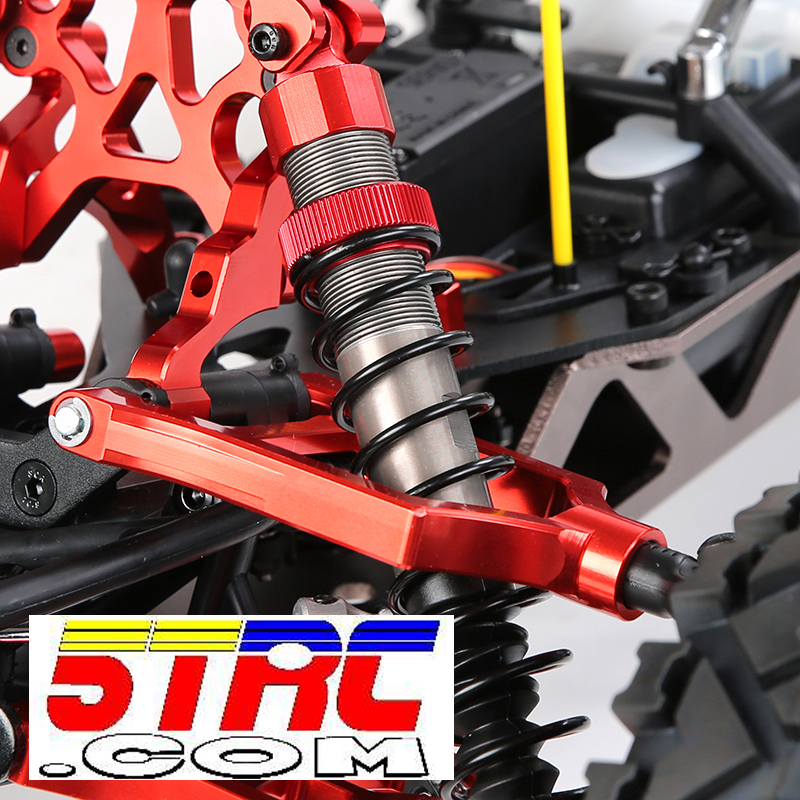

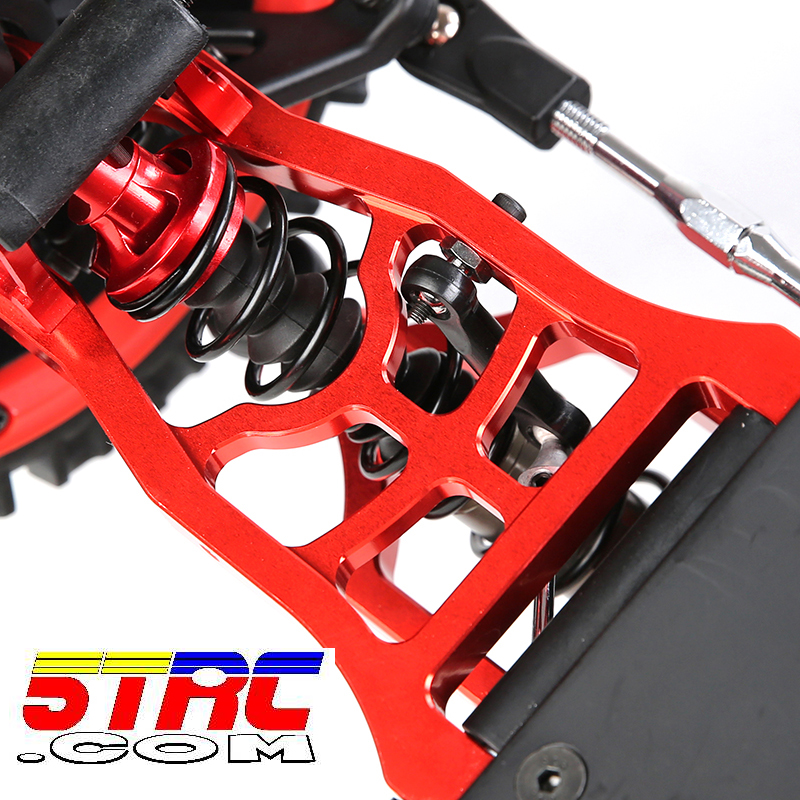

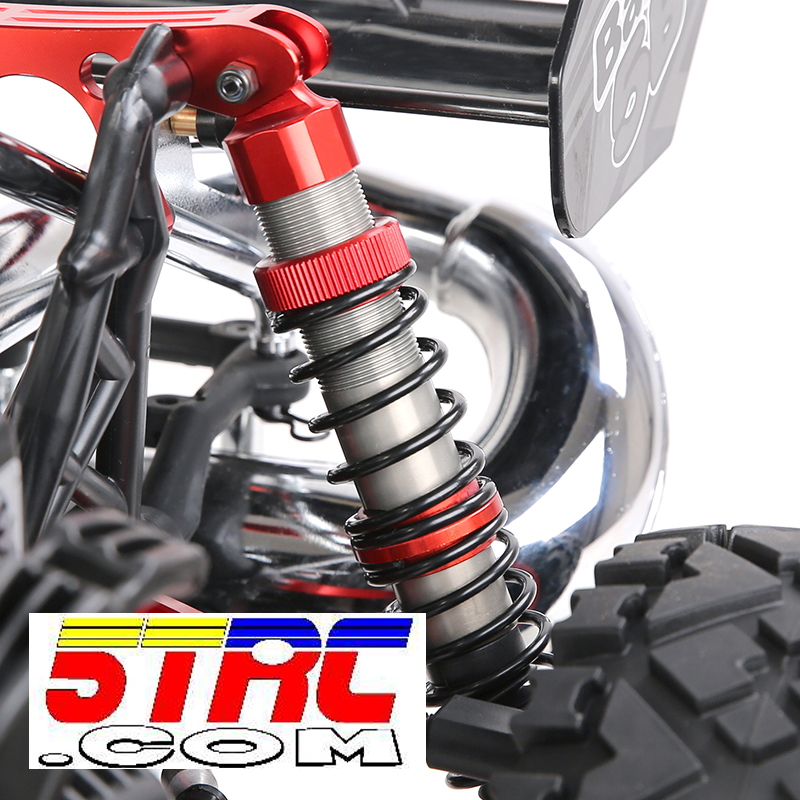

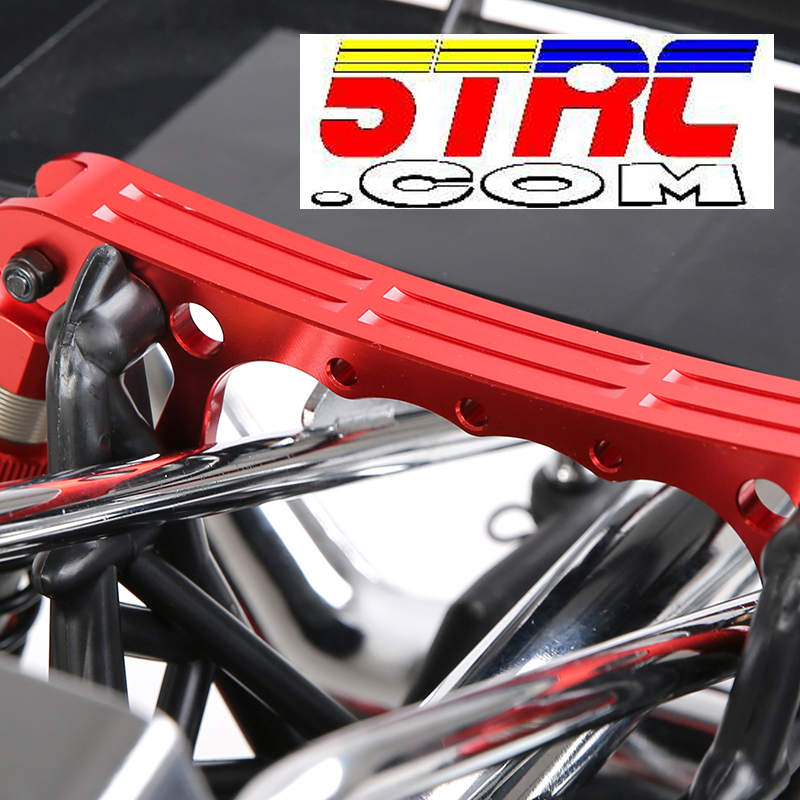

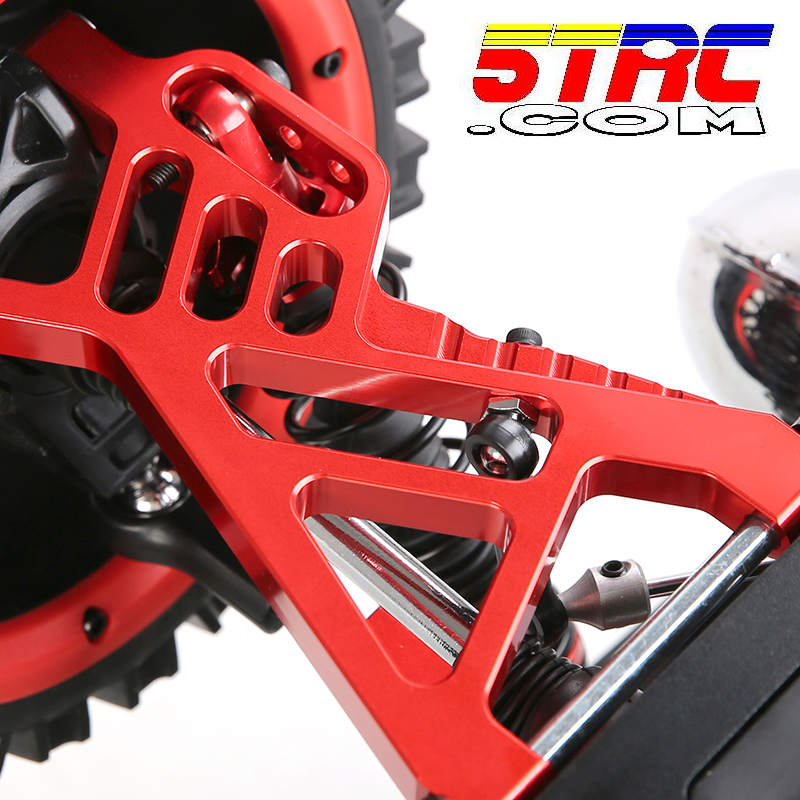

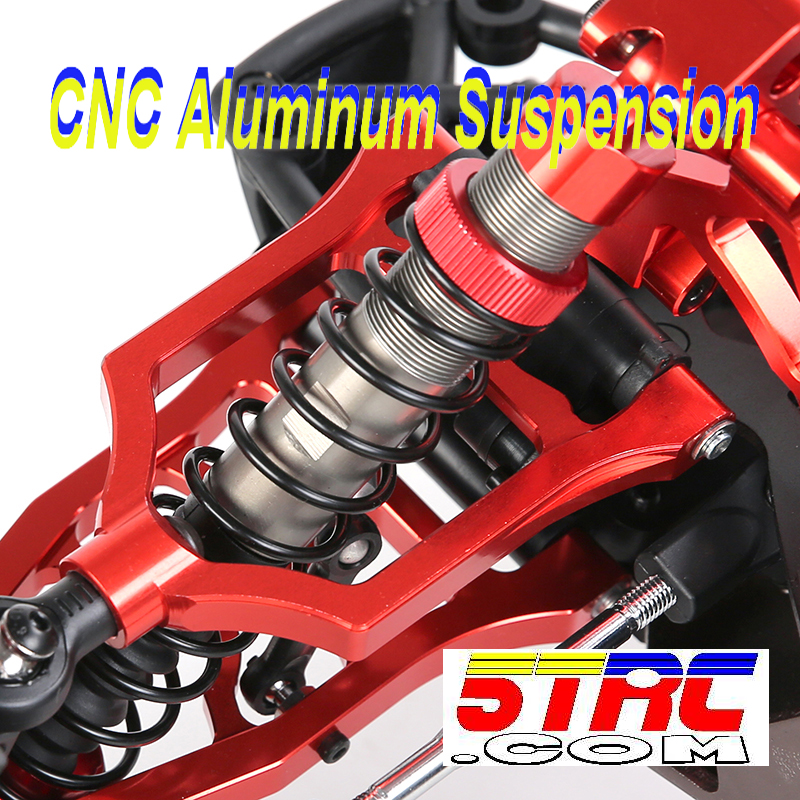

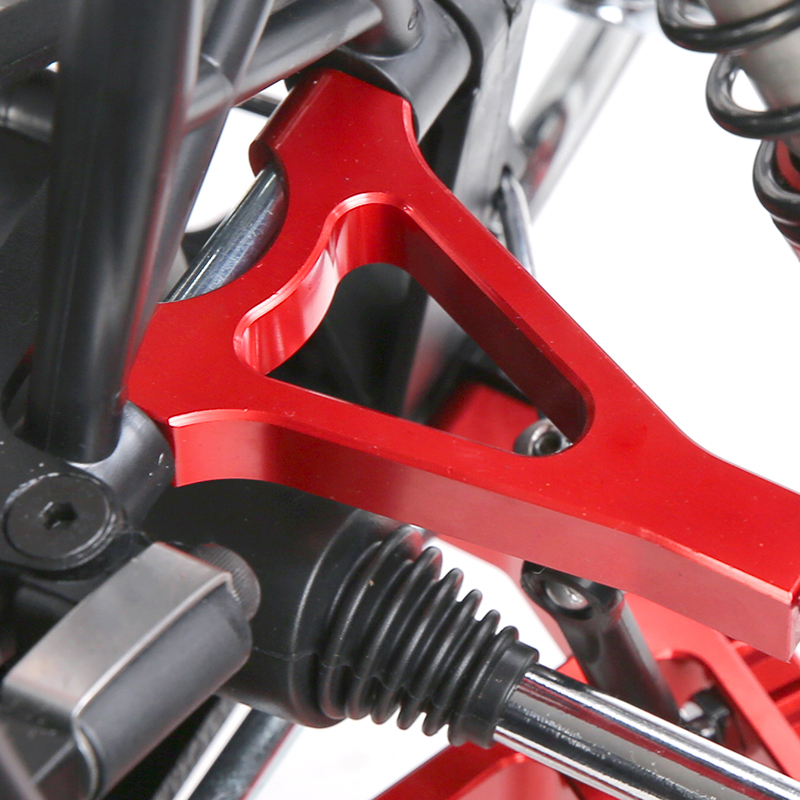

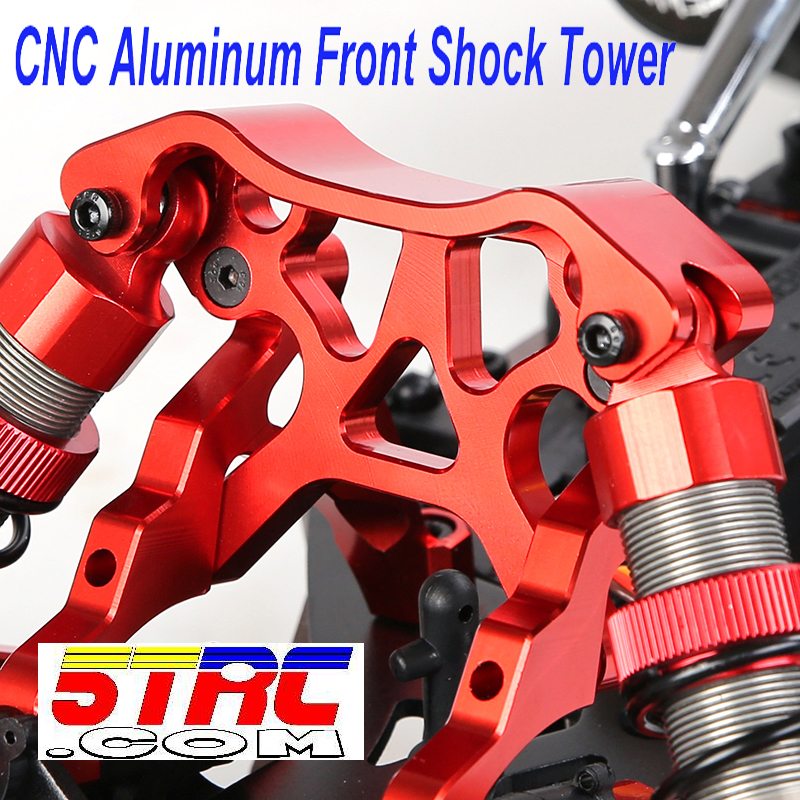

The Rovan 360A uses a rear-wheel-drive layout with rear axle braking to simplify maintenance while maintaining durability. CNC aluminum front and rear suspension components improve strength and handling precision. In addition, 8mm metal shock absorbers manage suspension travel and keep the chassis composed over uneven terrain.

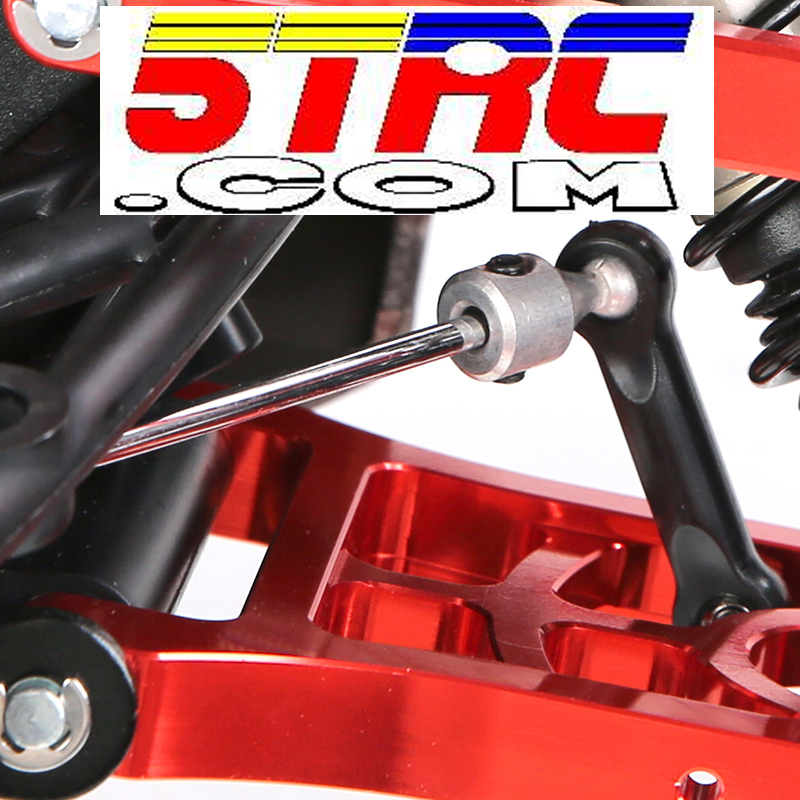

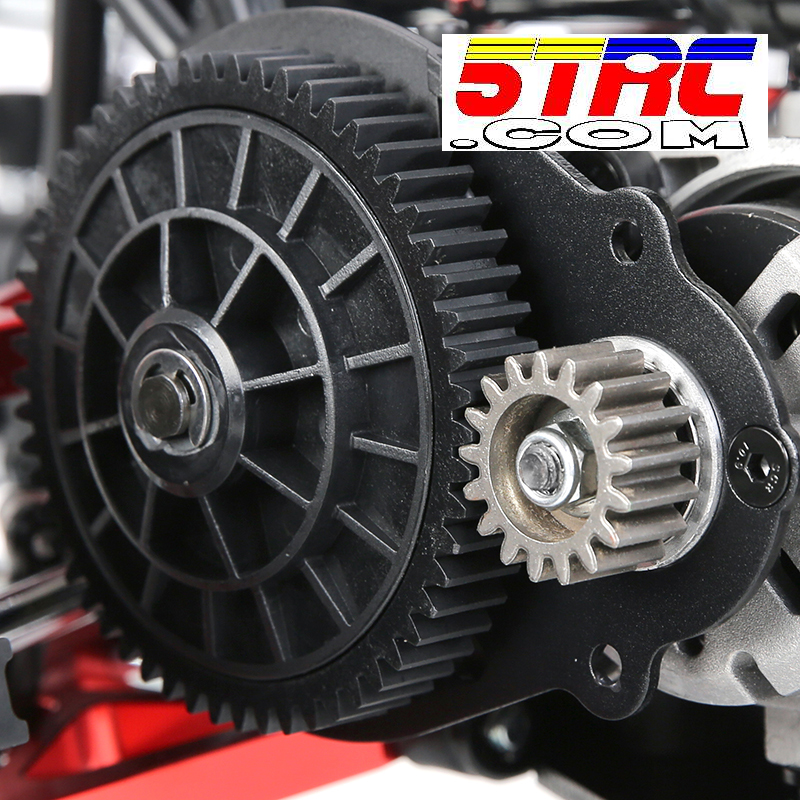

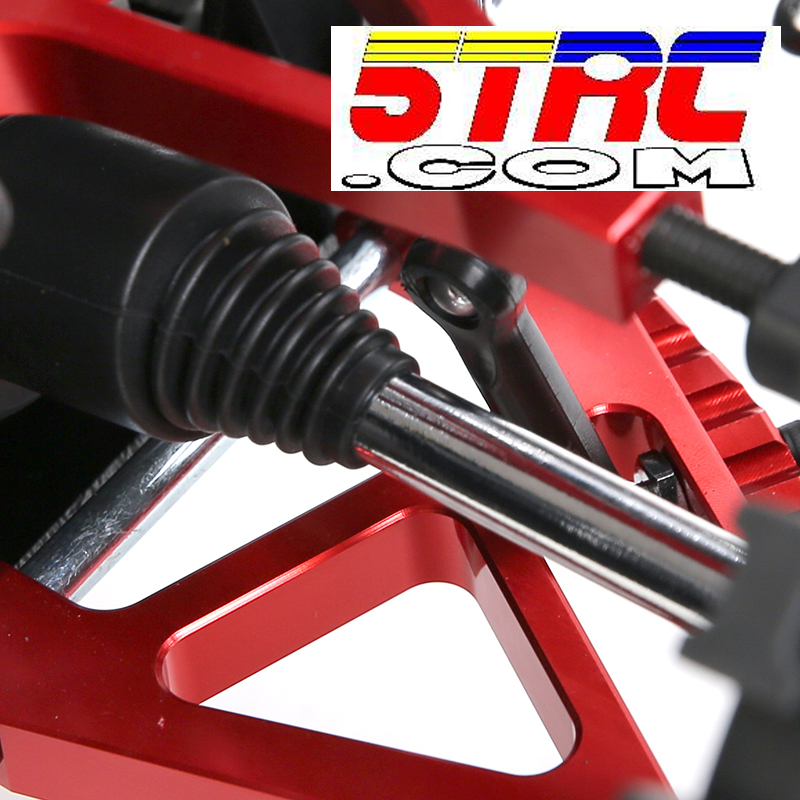

Front and rear anti-roll bars improve cornering stability, while a metal differential shell and 9mm half shafts handle drivetrain loads reliably during hard acceleration.
Engine and Exhaust Performance

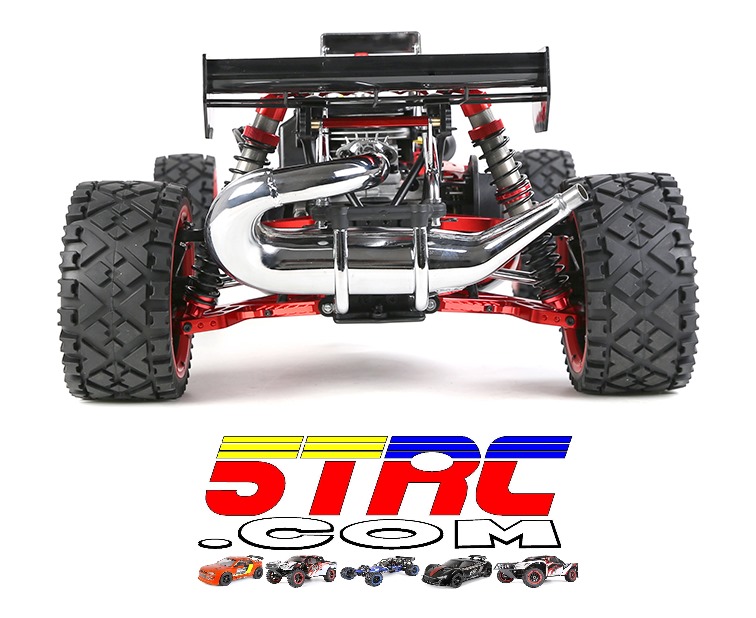

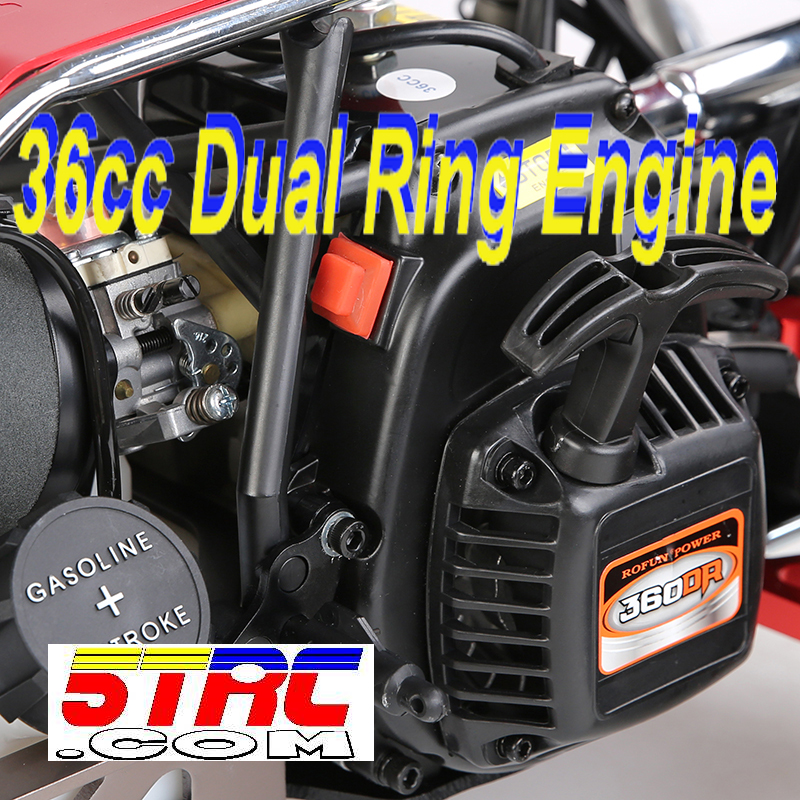

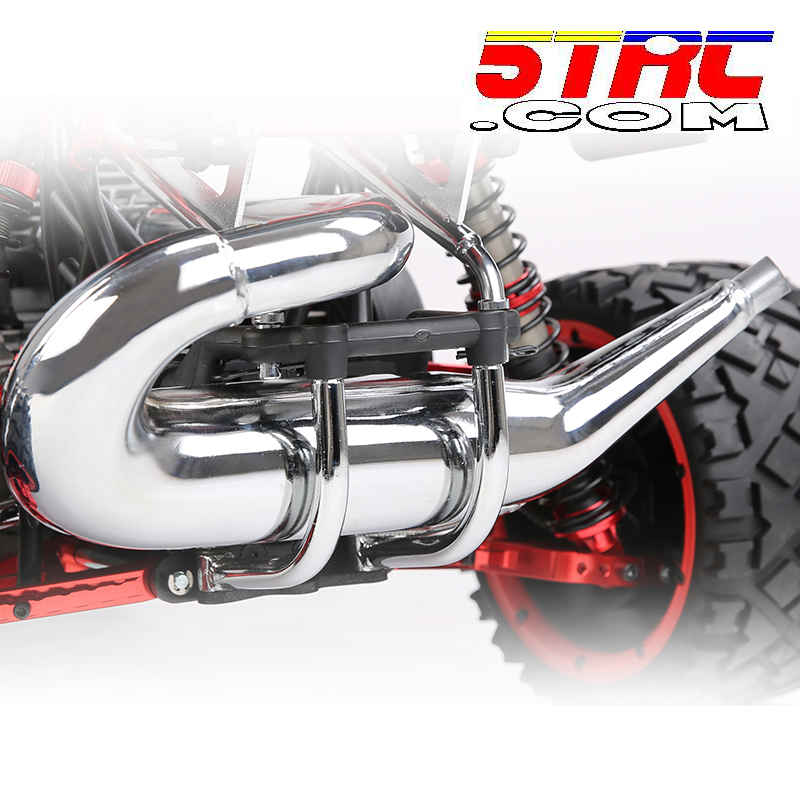

At the center of the Rovan 360A sits a 36cc single-cylinder, air-cooled, two-stroke gasoline engine equipped with a Walbro 1107 carburetor and NGK spark plug. The Dominator exhaust supports efficient airflow and responsive throttle input. Therefore, the buggy maintains smooth and predictable power delivery during extended run sessions.
Electronics and Radio System

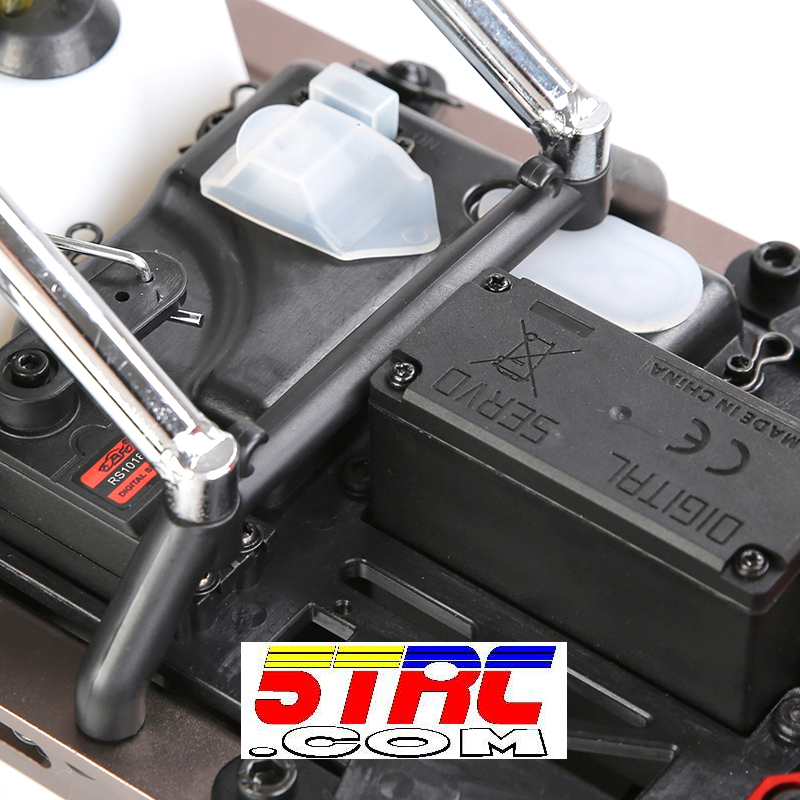

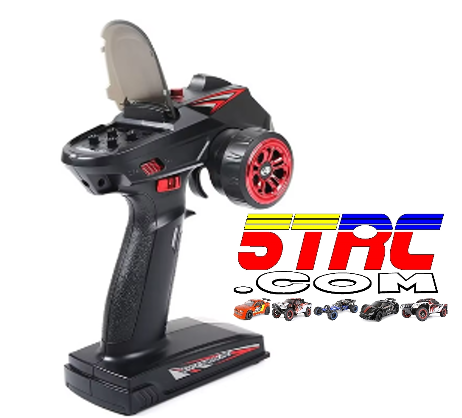

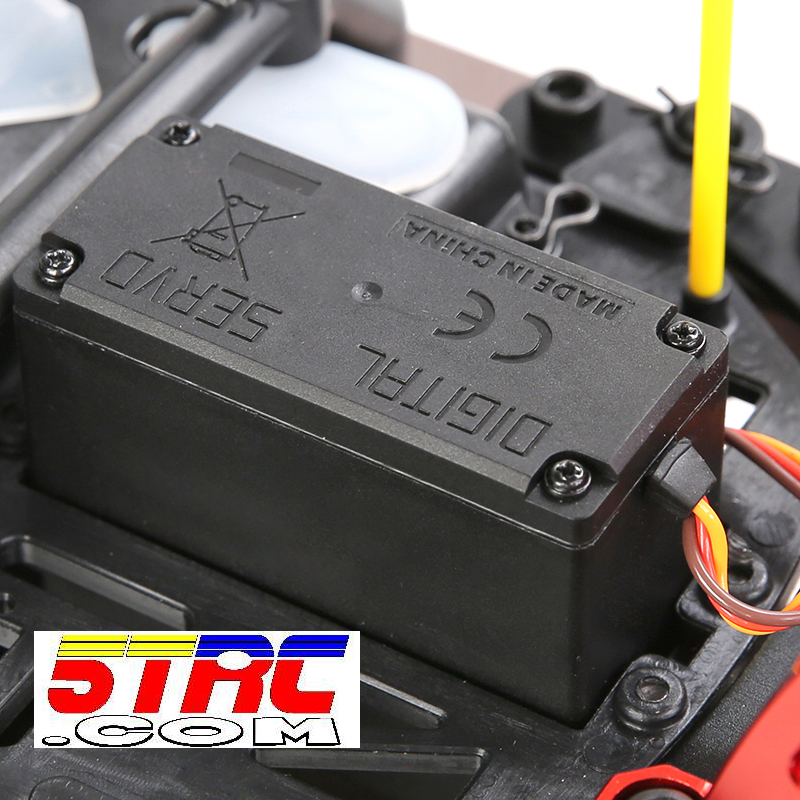

The electronics include a 2.4GHz six-channel BER-TRC4 LCD radio system that delivers stable signal performance. A 60KG metal gear servo controls steering, while an 18KG metal gear servo manages throttle and braking. A built-in SC6V 2000mAh battery supplies consistent power to the electronics.
Assembly and Operation – Rovan 360A

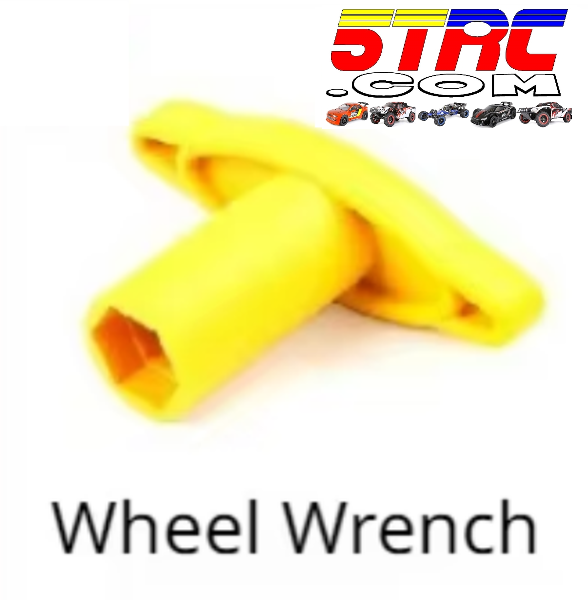

Out of the Box: Ready to race once the wheels are installed and the car battery has been charged. A minimum two-hour charge is recommended.
Battery Charging:

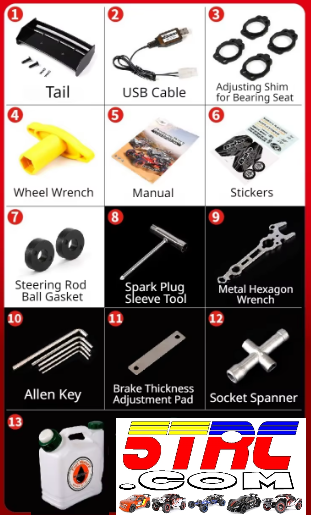

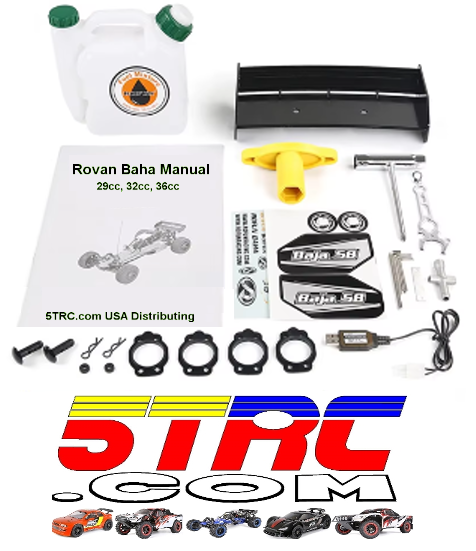

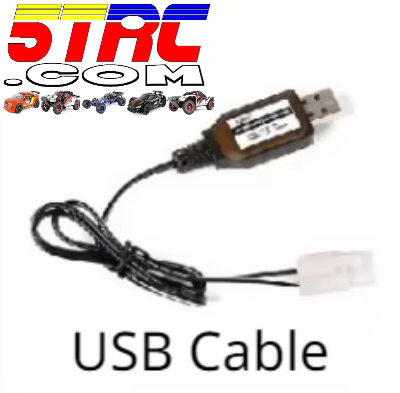

The buggy includes a charging plug and USB charger, so charging requires no disassembly. Allow the battery to cool for 30 minutes after a full charge before operation. Remove the charger within 30 minutes of reaching full charge to extend battery life. Store the battery fully charged when not in use.
Crash Durability:
Minor crashes rarely cause significant damage. The aluminum suspension and metal cage provide added protection during normal off-road driving.
Fuel Mixing – Rovan 360A

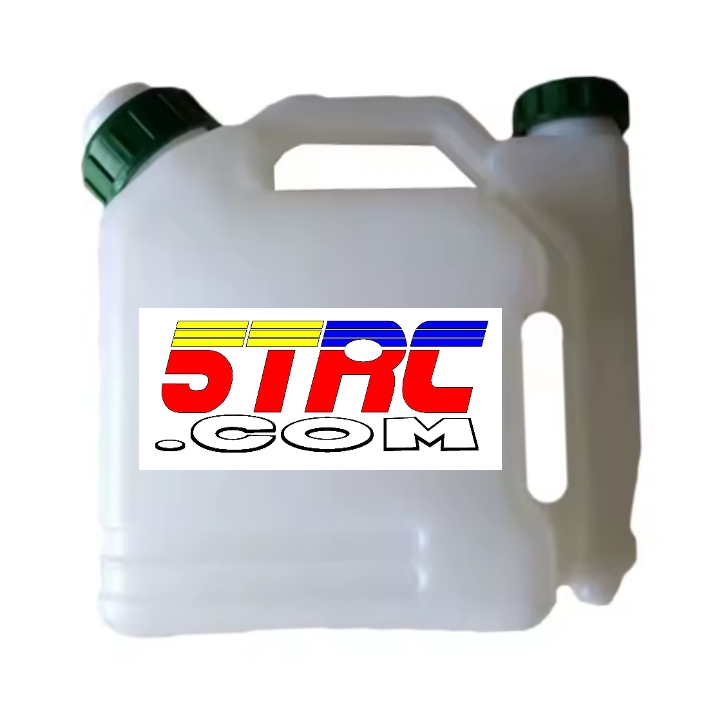

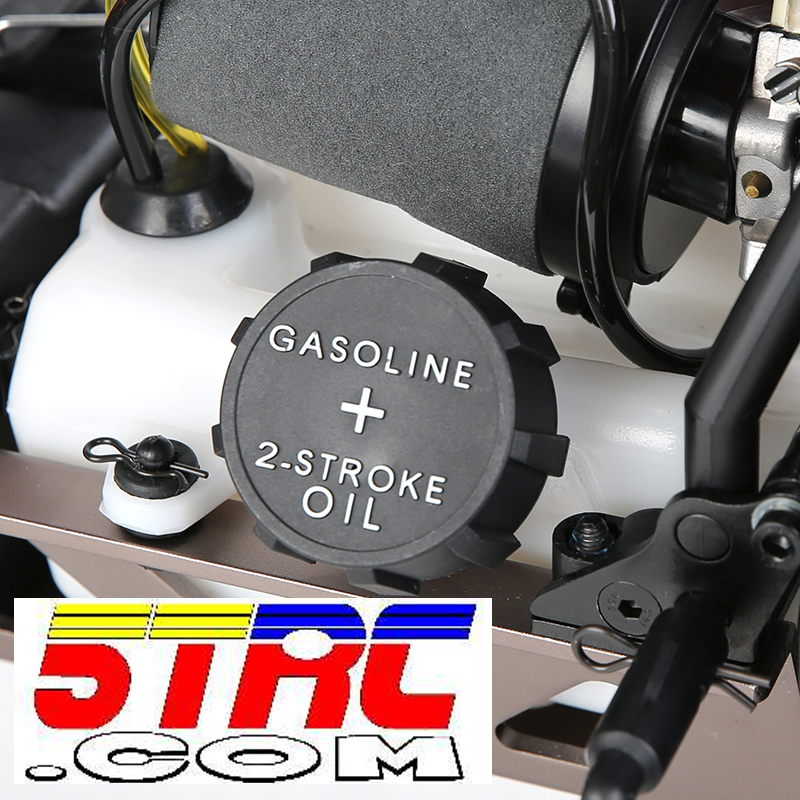

Use a 25:1 gasoline-to-oil ratio, equal to 151.4 ml of oil per gallon of gasoline. First, fill the oil compartment of the mixing jug to the 25:1 mark. Then, fill the gasoline compartment to the same level. Use non-synthetic, mineral-based two-cycle oil. Other compatible mineral oils may also be used.
Radio Setup and Operation
This six-channel radio primarily uses two channels. Trim adjustments sit under the rear transmitter cover and control steering trim, throttle and brake trim, steering travel, and throttle travel.
Starting Instructions
Ensure the car and radio power on and respond correctly.
Set the choke to the vertical closed position.
Prime the carburetor three to four times, or until fuel becomes visible.
Pull the starter gently until engagement, then use short, quick pulls.
Once the engine fires, turn off the choke and pull again to start.
Never crank more than three times with the choke engaged.
Break-In Process – Rovan 360A
Initial Run: Run the buggy at idle to one-quarter throttle for approximately five minutes, then allow the engine to cool completely.
Second Run: Repeat the process for ten minutes, then cool down.
Third Run: Increase throttle slightly and run for eight to ten minutes, then cool.
Subsequent Runs: Continue for about five cycles while monitoring airflow and debris. A clean engine runs cooler.
Final Break-In: Run at full throttle and burn through one full tank of fuel.
Post-Break-In: Check and snug the exhaust pipe.
Before each run, inspect all bolts and fasteners. Apply thread locker to clutch and brake assembly bolts after cleaning threads with alcohol.
Although aluminum components add strength, high-strength ABS parts elsewhere in the chassis absorb impacts and reduce secondary damage during off-road use.
All items offered by 5TRC are brand new, and approximately 99.9 percent of customers experience no issues. If you are new to the hobby, we strongly recommend reviewing our instructional videos available on YouTube. Rofun and Rovan products sold by 5TRC are sold without warranty, express or implied. Due to the nature of the hobby, these vehicles are frequently customized or modified by end users, and accordingly all products are sold without guarantees of any kind.
These items can cause severe burns from hot exhaust components if handled improperly, and improper use may result in serious injury or death due to impact to the operator, bystanders, or pets within the operating area. By purchasing this product, you agree to hold harmless 5TRC from any and all liability arising from the use or misuse of this product. Product images may not accurately represent the exact color of the model purchased and are provided for illustrative purposes to display mechanical features only.
Disclaimer and Safety Notice
All items offered by 5TRC are brand new. Approximately 99.9 percent of customers experience no issues. If you are new to the hobby, we strongly recommend reviewing our instructional videos available on YouTube. Rofun and Rovan products sold by 5TRC are sold without warranty, express or implied. Due to the nature of the hobby, these vehicles are frequently customized or modified by end users. Accordingly, all products are sold without guarantees of any kind. These items can cause severe burns from hot exhaust components if handled improperly. Improper use may also result in serious injury or death due to impact to the operator, bystanders, or pets within the operating area. By purchasing this product, you agree to hold harmless 5TRC from any and all liability arising from the use or misuse of this product.
Product images may not accurately represent the exact color of the model purchased and are provided for illustrative purposes to display mechanical features only.
