Description

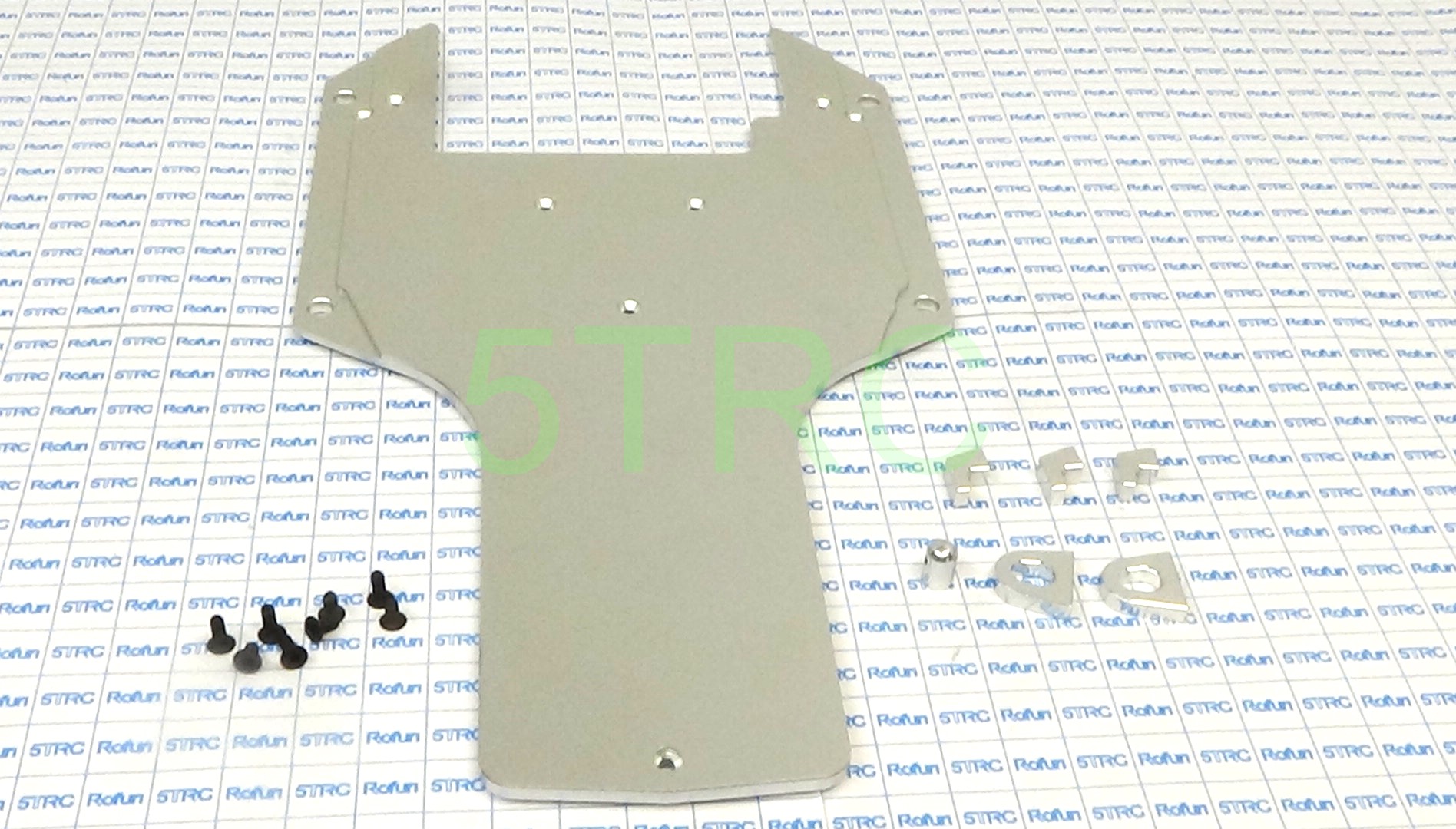

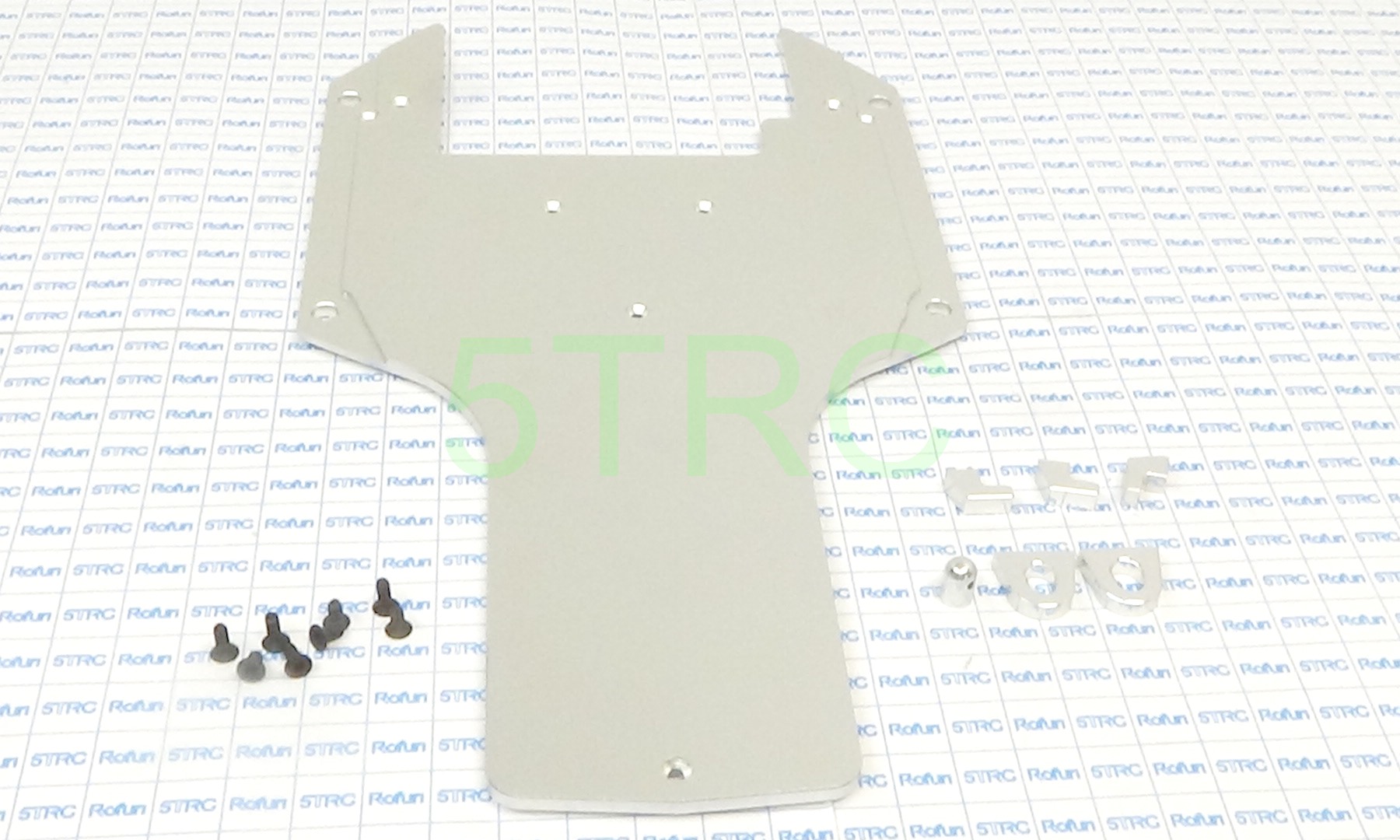

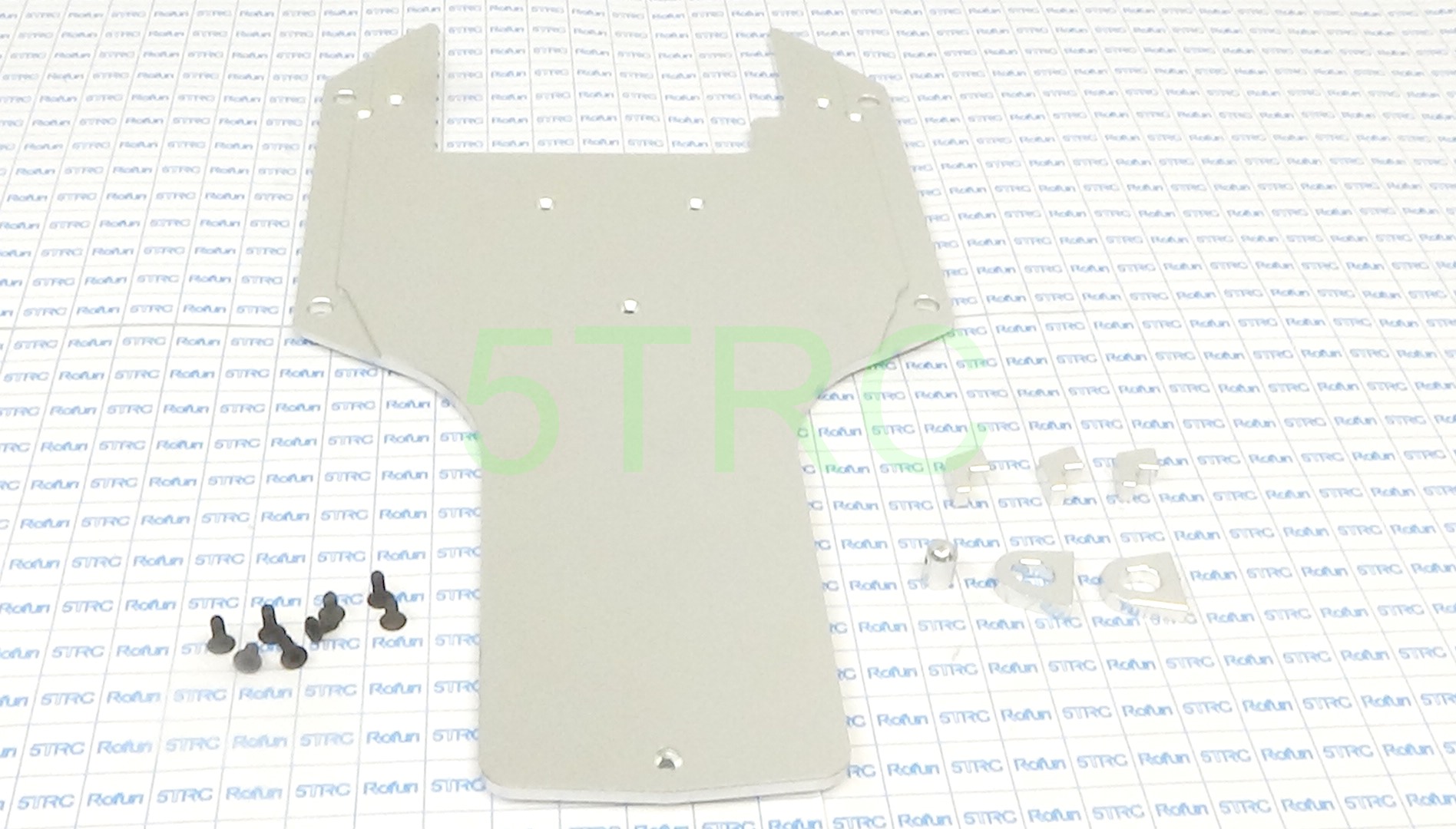

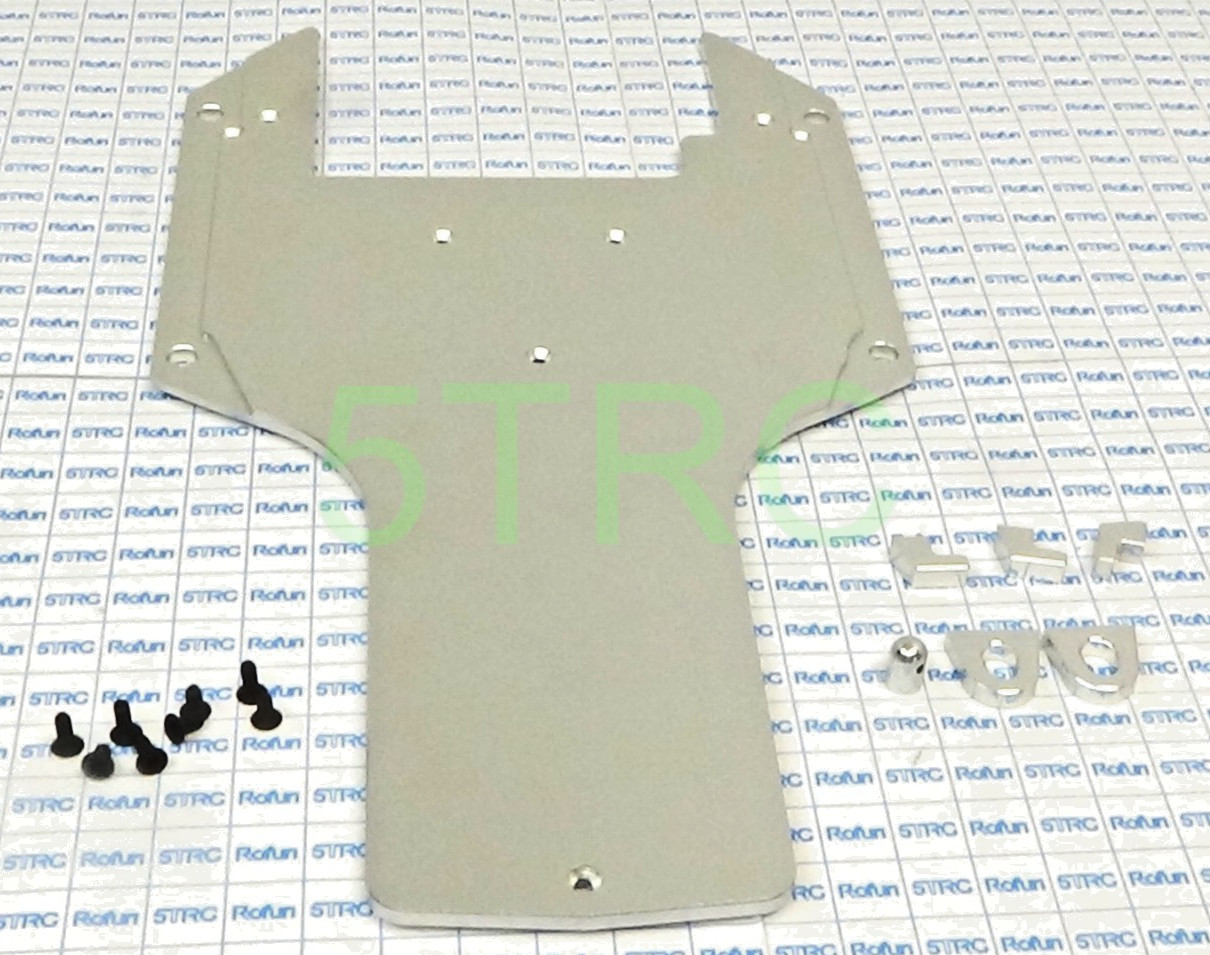

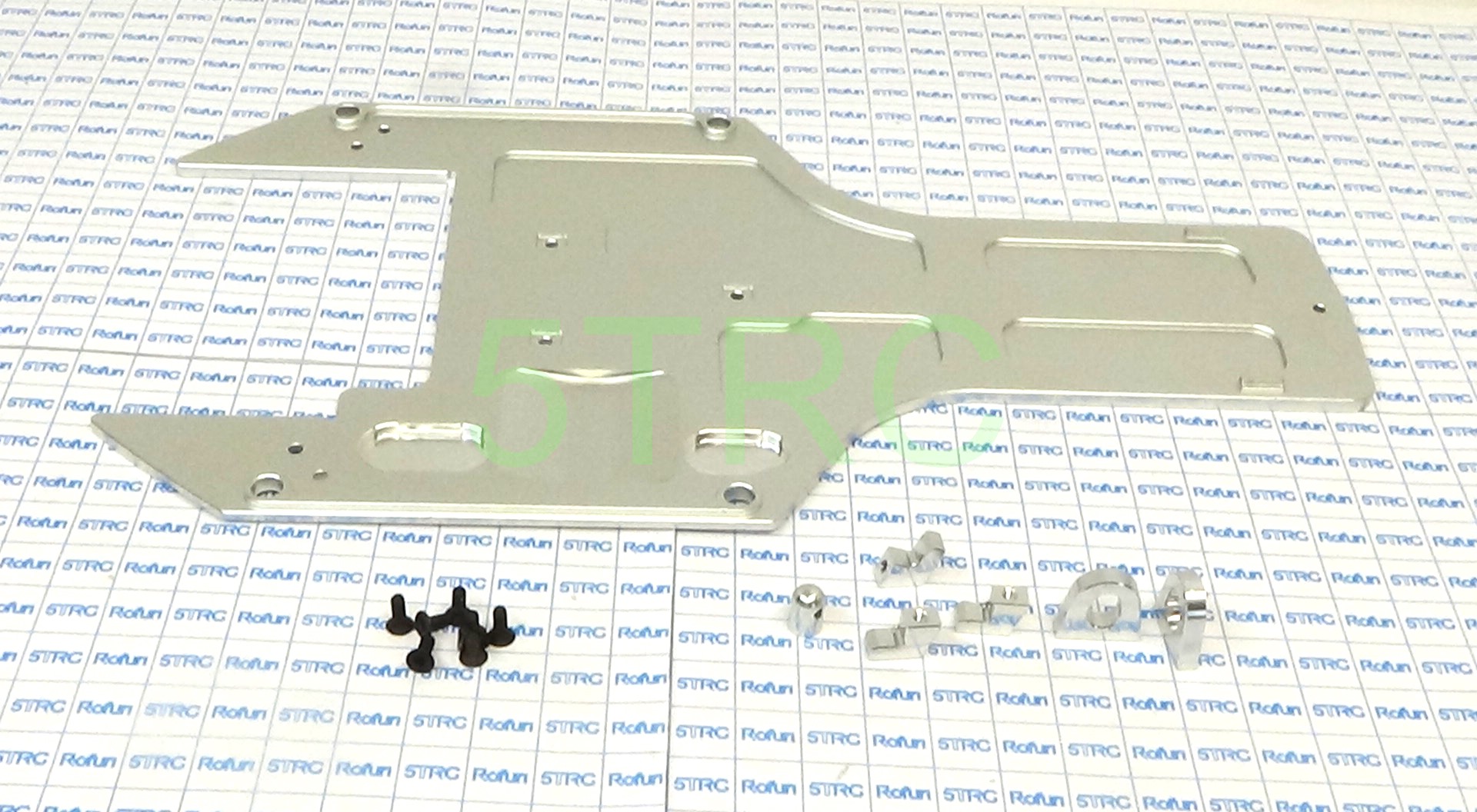

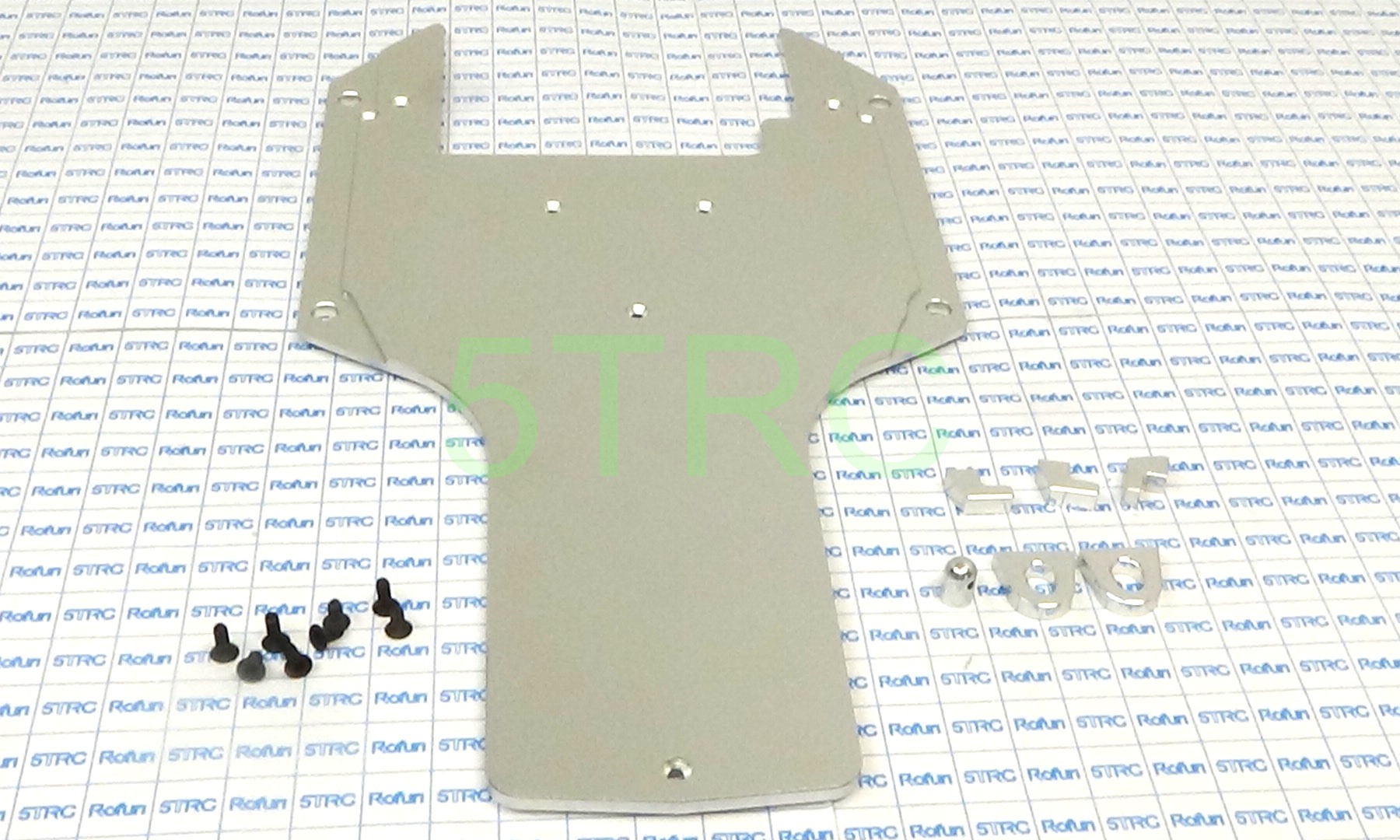

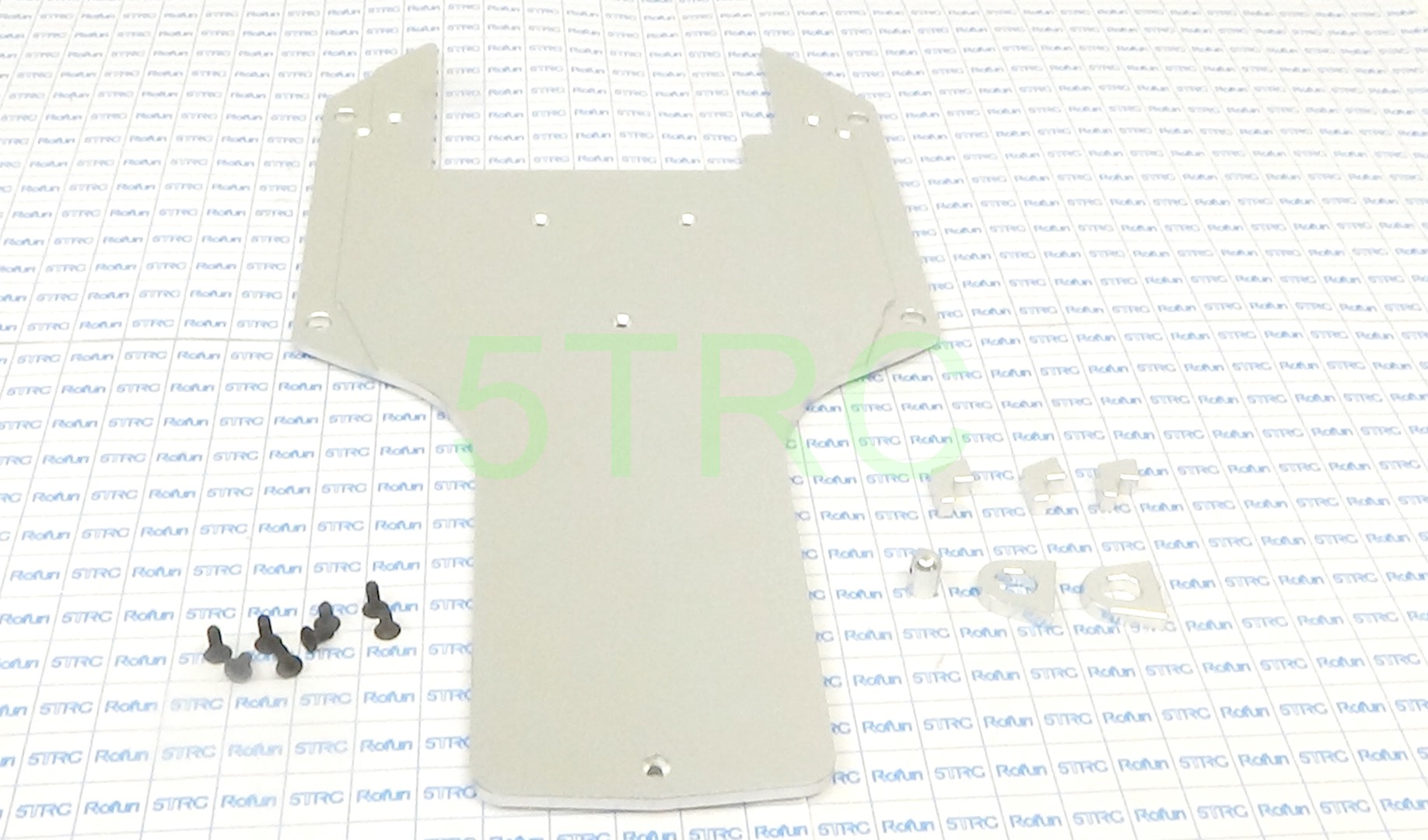

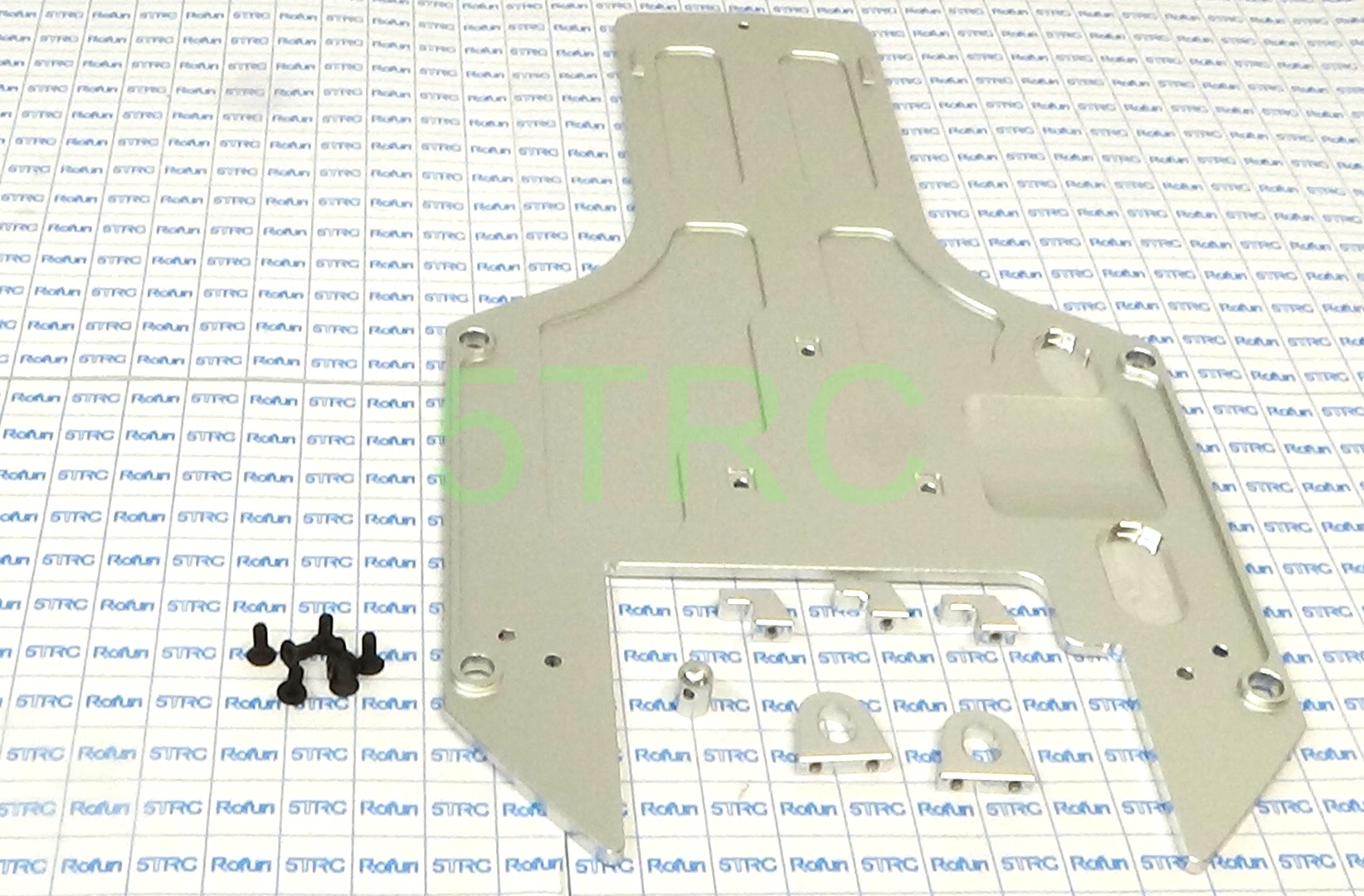

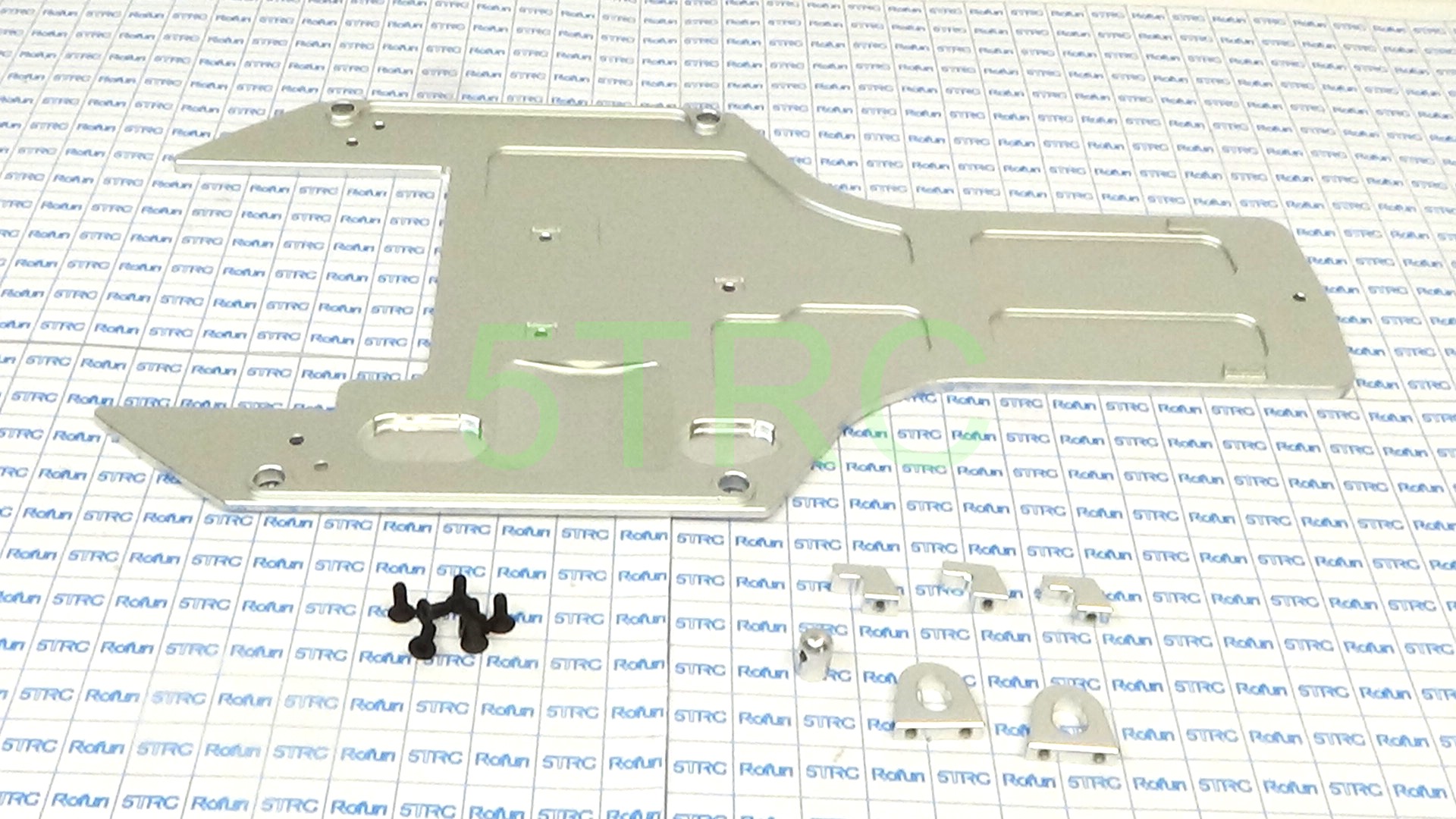

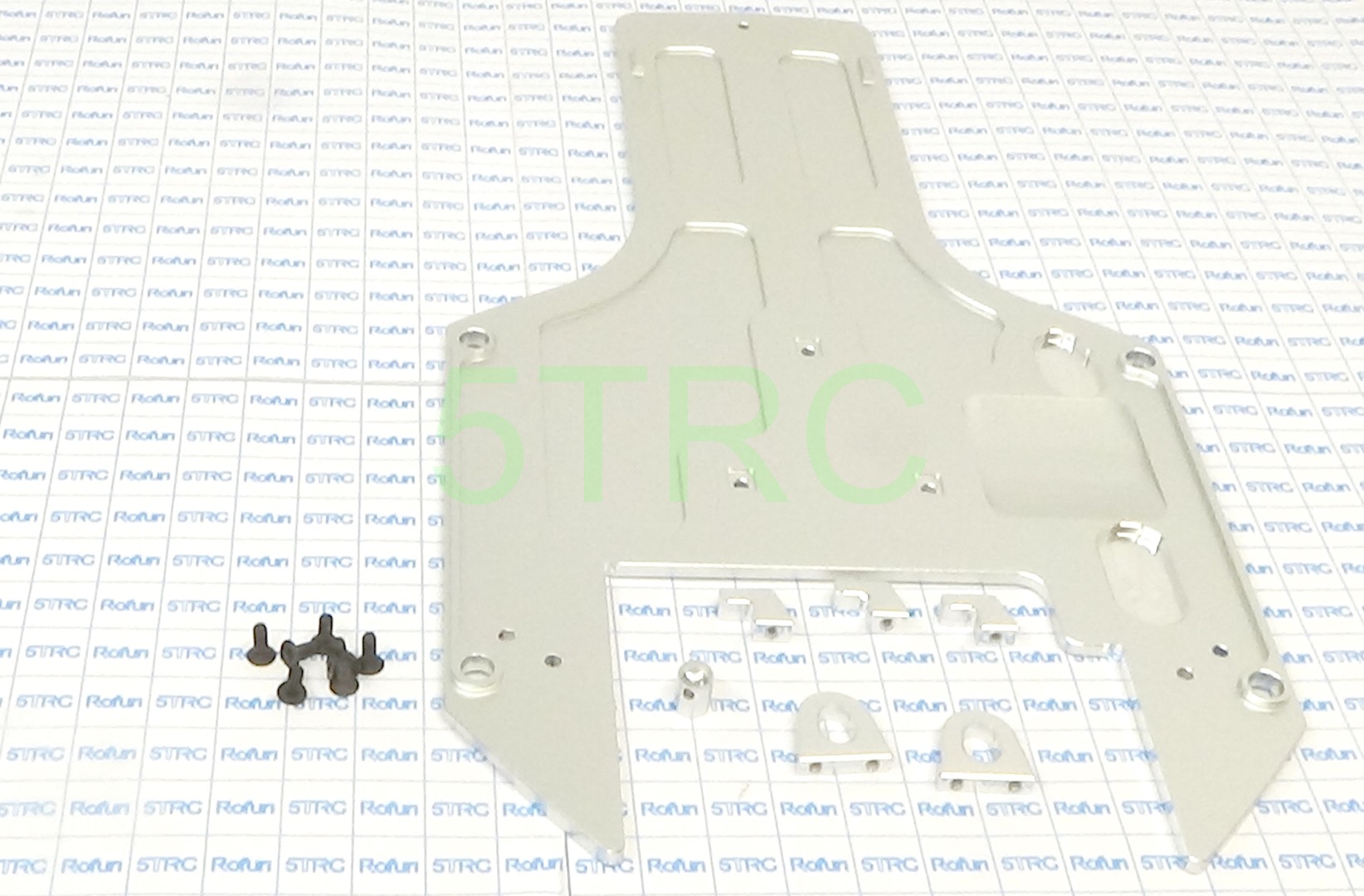

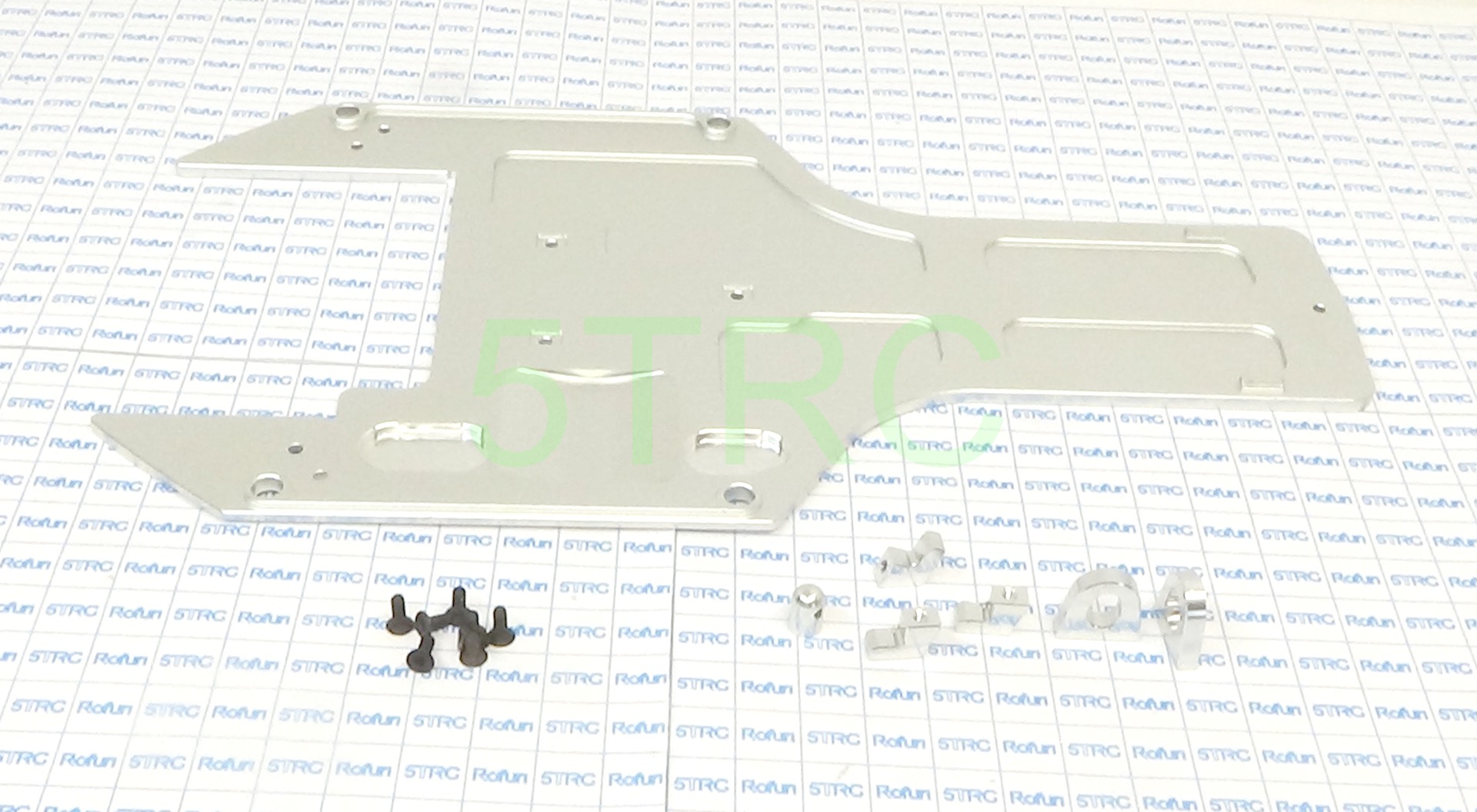

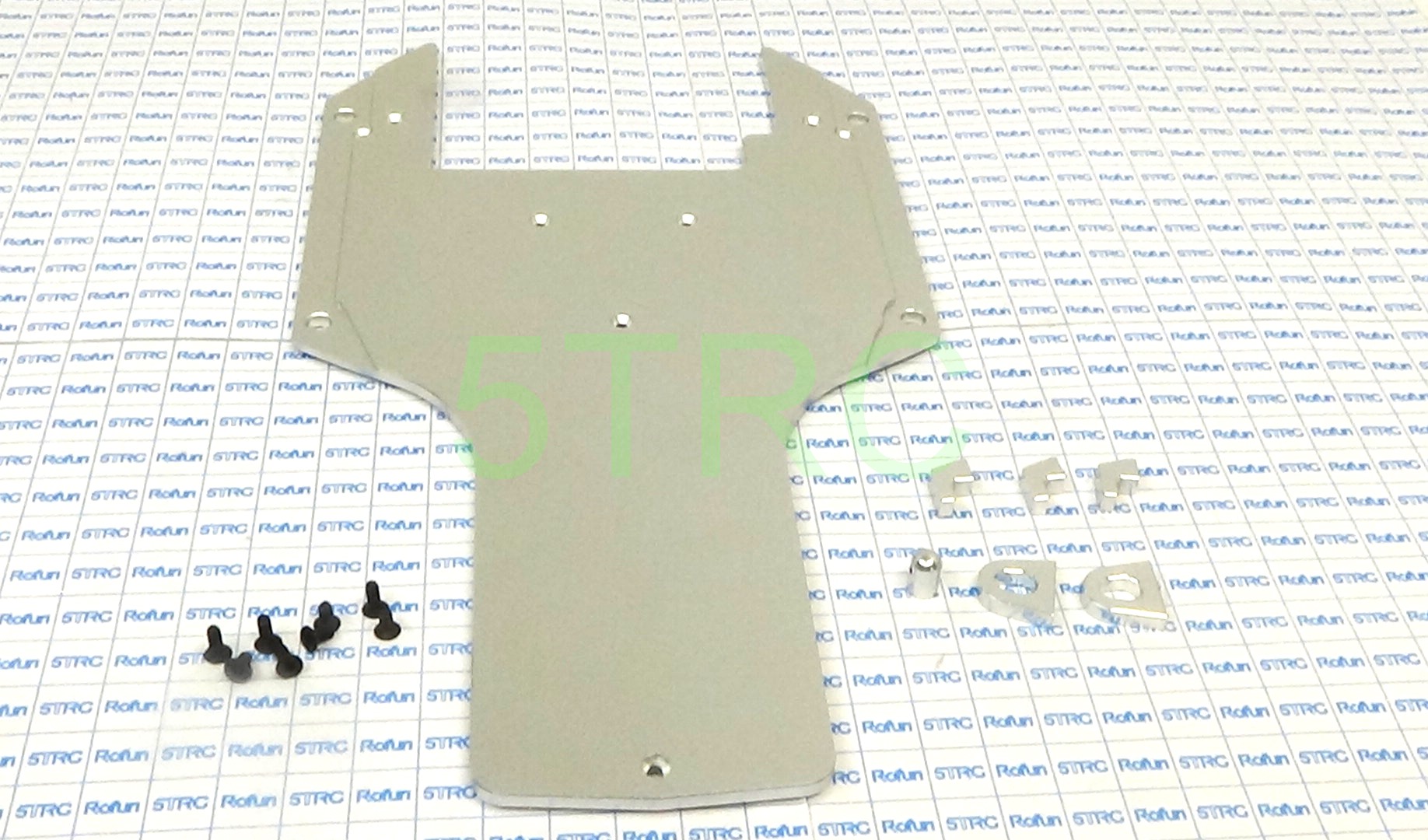

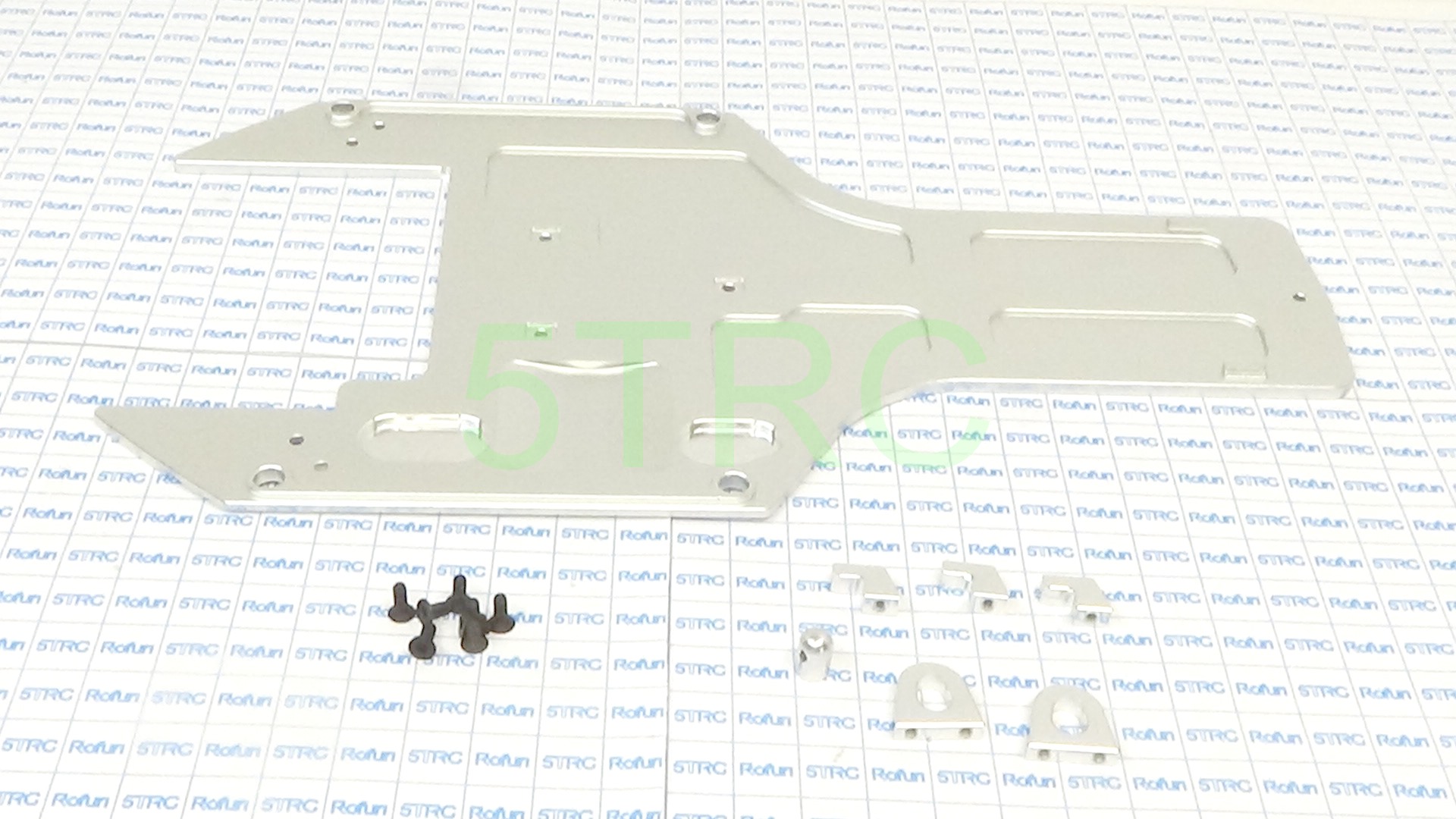

Rofun Aluminum Main Chassis Plate Mounting Hardware Silver
Rofun aluminum main chassis plate mounting hardware for compatible 1/5 scale Rofun and Rovan RC applications. This silver aluminum hardware is used in the main chassis plate mounting area and is intended for compatible large-scale RC chassis assemblies.
Product Details
| Part | Main chassis plate mounting hardware |
| Material | Aluminum |
| Color | Silver |
| Application | Compatible 1/5 scale Rofun and Rovan RC chassis applications |
| Purpose | Mounting hardware for the main chassis plate area |
| Maintenance | RC tool kits and setup tools |
Compare the mounting locations, hardware shape and chassis configuration before ordering. During installation, align the chassis components before tightening the hardware and avoid overtightening fasteners that could damage threads or distort the mounting area.
Disclaimer and Safety Notice
All items offered by 5TRC are Brand New. 99.9% of our customers experience no issues with the products. If you are new to the hobby, we strongly encourage you to watch our instructional videos available through YouTube. 5TRC sells Genuine Rofun products through eBay without an express or implied warranty. Enthusiasts commonly customize and modify these vehicles, so 5TRC sells these products without guarantees of any kind. Your purchase may still qualify for eBay Money Back Guarantee coverage.
Exhaust components can cause severe burns when handled improperly. Improper operation can also cause serious injury or death through impact with the operator, bystanders or pets. By purchasing this product, you agree to hold harmless 5TRC from liability for accidents, injuries or damages resulting from use or misuse.
Maintenance and Setup
Large-scale gasoline RC cars require regular adjustment, maintenance and mechanical work. New vehicles may need minor adjustments to the servo horn, carburetor, camber and other components. Many experienced owners inspect the entire vehicle before the first run and apply thread-locking compound to appropriate metal-to-metal fasteners. RC tool kits and setup tools can help with routine maintenance and adjustments.
Avoid carburetor adjustments until the engine completes its initial break-in period, usually after at least three tanks of fuel.
Rofun Car and Truck General Assembly and Operation
Out of the box: Install the wheels and charge the car battery before operation. We recommend at least 2 hours of charging before the first run.
Battery charging: The car includes a charging plug and USB charger, so charging does not require disassembly. Let the battery cool for 30 minutes after a full charge before operation. Remove the charger within 30 minutes after the green full-charge light appears to help prolong battery life. Store the battery fully charged. We use a countdown timer like item 386419780550.
Crash durability: Minor crashes are unlikely to cause significant damage.
Fuel Mixing
Use a 25:1 gasoline-to-oil ratio, equal to 151.4 ml per gallon. Fill the small compartment of the mixing jug to the 25:1 line with oil, then fill the gas compartment to the 25:1 line. Use non-synthetic, mineral-based two cycle oil. Other brands can also work.
Radio and Starting Instructions
Radio: This 6-channel radio primarily uses 2 channels with this car. The four controls under the rear cover adjust steering trim, throttle and brake trim, steering control extents, and throttle control extents.
Starting: Turn on the radio and car and confirm that both respond correctly.
Move the red choke lever on the carburetor to the vertical closed position.
Press the primer bulb 3 to 4 times, or until you see fuel.
Pull the starter rope gently until it engages, then pull swiftly. Use short, quick pulls and do not pull the rope to its full extension.
Crank until the engine fires, usually within 1 to 3 pulls. Never crank more than 3 times with the choke on.
Turn the choke off, then pull the starter 1 to 2 times to start the engine.
Break-In Process
Initial run: Run the car at idle to 1/4 throttle or less for about 5 minutes, then let the engine cool completely.
Second run: Repeat for 10 minutes, then let the engine cool completely.
Third run: Increase gradually to half throttle. A new engine creates extra heat from friction. Run for 8 to 10 minutes, then let it cool completely.
Subsequent runs: Continue for about five runs. Keep debris away from the cooling system because a clean engine runs cooler.
Final break-in: After these break-in runs, use full throttle during 10 to 15 minute runs. Check for loose bolts and debris between runs.
Post break-in: Check and snug the exhaust pipe after the initial break-in process.
Before each run: Check bolts throughout the car. We recommend threadlocker on appropriate clutch and brake assembly bolts. Clean bolts and holes with alcohol and a cotton swab to improve threadlocker adhesion.
Failsafe and Servo Protection
Rofun equips these RC vehicles with an automatic braking failsafe. The failsafe activates when the receiver has power but receives no transmitter signal. Do not leave the vehicle powered on with the transmitter off because the throttle/brake servo will remain engaged. Continuous engagement can overheat and damage internal components, including the servo capacitor and circuit board. Always turn on the transmitter before the vehicle, and turn off the vehicle before the transmitter.
5TRC Rofun 29-45cc Engine Temperature Guidelines
Check a Rofun air-cooled 2-stroke gasoline engine at the cylinder head near the spark plug. See the temperature reference at https://ebay.io/m/np3Fce.
Normal operating temperature: A fully warmed engine will generally run between 230°F and 280°F (110°C to 138°C). Normal driving can produce temperatures from 250°F to 280°F. Allow about 3 to 5 minutes of actual driving for warm-up before making final carburetor adjustments.
Temperature alarm: If your vehicle has temperature telemetry, set a high-temperature warning at 300°F (149°C). This setting provides an early warning when the engine begins running hotter than normal.
High Temperature and Lean Running
Maximum recommended temperature: At about 300°F, reduce throttle immediately. Stop the vehicle if the temperature does not quickly decrease. Continued operation above this level can damage the piston, cylinder or rings.
Running lean: An excessively lean carburetor setting can raise engine temperature rapidly. Other warning signs include unusually high RPM, hesitation, loss of power under load, rising temperature, or RPM that stays high after releasing the throttle. Do not rely only on a temperature sensor because the piston can overheat before the cylinder-head sensor shows the full increase.
After a hard run: After extended high-speed or heavy-load operation, let the engine idle for about 30 seconds before shutting it off.
5TRC recommended settings: Normal operating range: 230°F to 275°F. Temperature alarm: 300°F. Stop and inspect the engine at 320°F or higher. Normal warm-up time: 3 to 5 minutes of driving.
Ownership and Compatibility
These are Genuine Rofun Hobby and Racing Grade RC vehicles, not full-size turnkey automobiles. Owners should expect routine maintenance, adjustments and occasional repairs. New large-scale RC owners should seek help from an experienced hobbyist, hobby shop, friend, club or social-media group when needed.
We do not accept returns because a buyer is uncomfortable performing normal adjustments or maintenance. If you are not mechanically inclined and do not have someone available to help, learn what large-scale RC ownership involves before buying.
Compatibility Notice: References to other brands or models indicate possible compatibility only and do not guarantee fitment. Parts from different manufacturers are not necessarily interchangeable, even when made for the same vehicle. Verify all measurements, specifications and compatibility before ordering or installation. We cannot accept returns after installation, modification, bending, stretching, drilling, damage or test-fitting to incompatible parts.
Painting the Clear Body
Paint the inside of the body using Tamiya polycarbonate PS paint for proper adhesion and durability.
For a deeper metalflake appearance, apply a very light coat of clear and then sprinkle a glitter additive, metalflake, or pearl while the paint remains wet. Back it with your preferred colors for a stronger finish.
Practice the painting process first on a scrap piece of plexiglass. Many local lumberyards can provide small leftover or damaged pieces for paint testing.
Product Pictures
Product images may not accurately represent the exact color of the model purchased. We provide them to illustrate mechanical features. Some listings may display other items or cars for reference. The listing does not include those reference items unless stated. Although we do our best to make every listing accurate, AI-assisted listing work can occasionally introduce inaccurate details or specifications. Please contact us with questions, comments or inaccuracies you notice.
